Details

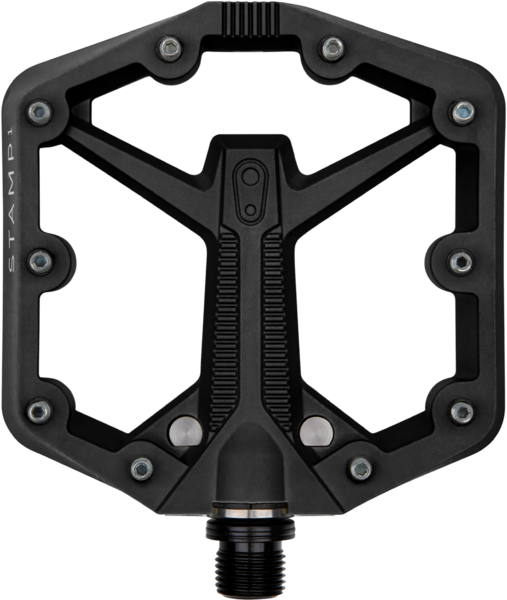

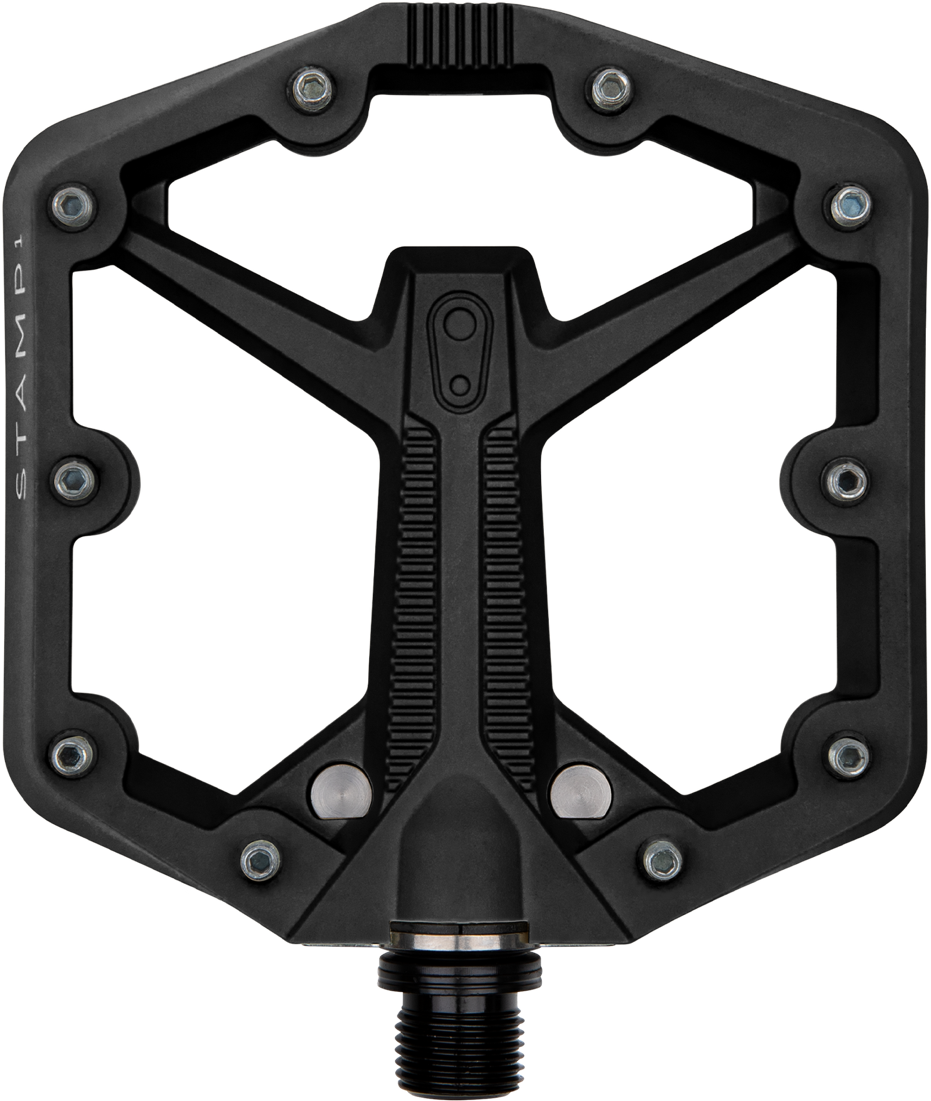

The new Stamp 1 Gen 2 builds upon the Stamp legacy with a true concave body design for enhanced on-trail confidence, trusted Igus internal components for durability, and a new one-piece pin design for maximum grip and easy pin replacement.
Crafted with an uncompromising commitment to quality, our updated Stamp 1 pedal boasts a robust nylon composite body and inherits the tried-and-true internals from our award-winning Stamp 7 flat pedals, keeping you supported lap after lap.
Features:
- Optimal size-specific surface area
- Thin, concave profile - 13.5mm to 15.5mm pedal body height
- New one-piece replaceable traction pins, 10 per pedal
- Upgraded, fully serviceable IGUS bearings & seal system
- Stamp Small recommended for shoe sizes: 3-10 (US M) // 37-43.5 (EU)
- Stamp Large recommended for shoe sizes: 10-15 (US M) // 43.5-49 (EU)
FOOTPRINT - 100mm x 100mm
SHOE SIZE - US 3-10 // EU 35-43.5
WARRANTY - 5 years
WEIGHT - 321g per pair
INNER BEARING TYPE - Igus LL-glide bearing
OUTER BEARING TYPE - Igus LL-glide bearing
TRACTION PINS - 10 replaceable per pedal
PIN LENGTH - 23mm inner, 25mm inner
SPINDLE MATERIAL - Forged SCM 435 Chromoly Steel
BODY MATERIAL - Composite
Part Numbers
Option | UPC | Store SKU |
---|---|---|
Platform / Black | 641300168108 | CRA43746798K |
