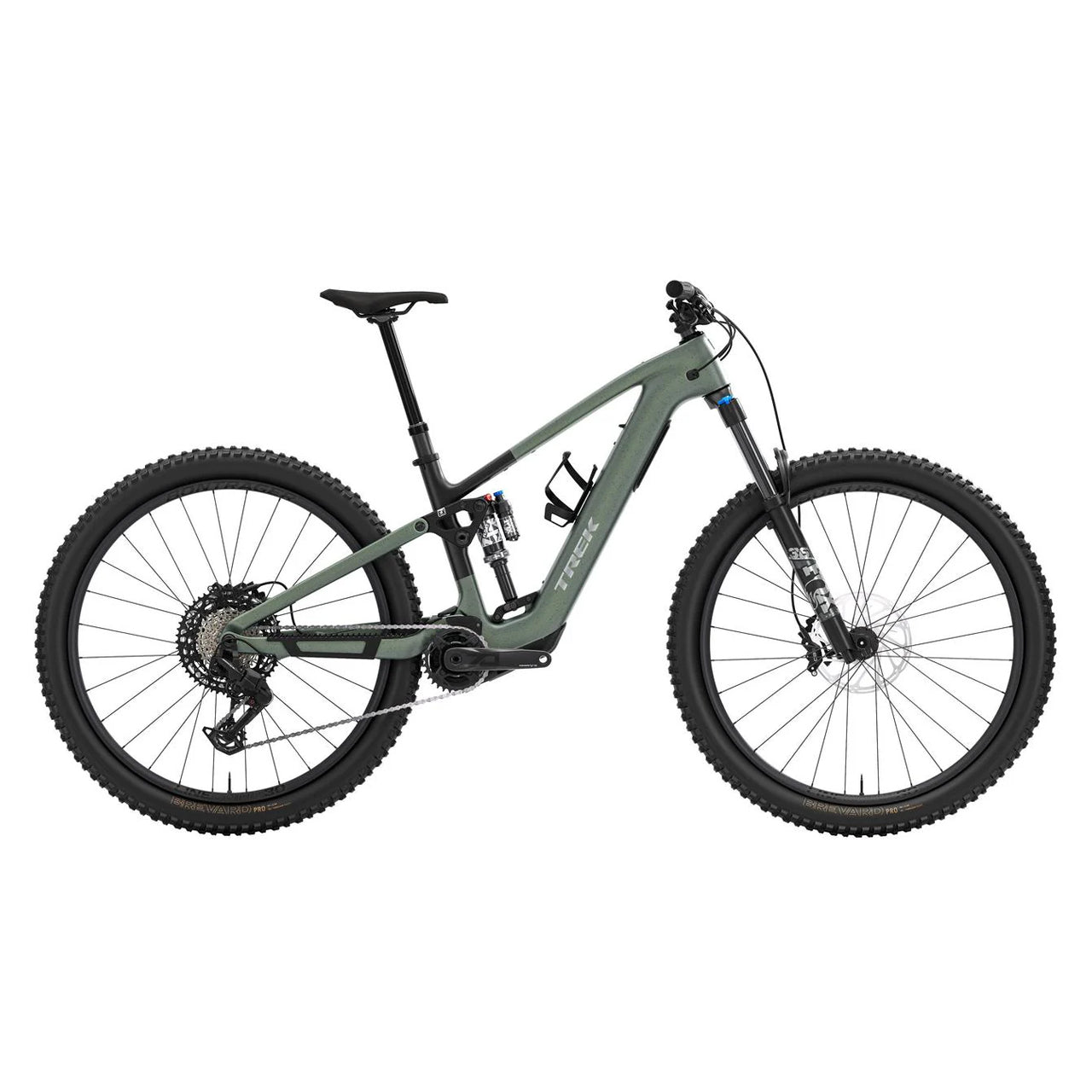

Color: Lichen Green/Keswick Green Splatter

Size: Medium

Small Medium Large X-Large XX-Large

SKU:FUE42671963R

Why Buy a Bike From The Bike Shop?

15% off Parts & Accessories
When you buy a bike at The Bike Shop, you get 15% off of parts and accessories for the first 30 days following your bike purchase. The discount will automatically apply in the checkout at the time of purchase with your bike. This excludes items already marked down and some brands.

Service Plan
If you're local to Calgary or Canmore, you also get one complimentary complete tune-up within the first 16 months of owning the bike. Also included is a lifetime of unlimited service checks to keep you informed on the overall condition of your bike.

After Purchase Support
You're not on your own after you buy a bike from us. We have a dedicated e-comm team that is here to assist if you need help with anything. We also created video tutorials on how to unbox your bike when it arrives and get it ready to read.

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Cargo bikes:
Due to the size of the box that cargo bikes ship in, we are unable to ship cargo bikes directly to your address. Cargo bikes are shipped to a Manitoulin Depot for you to pick-up. For more detail, visit our shipping page.

Bike Specifications

Specifications are subject to change without notice

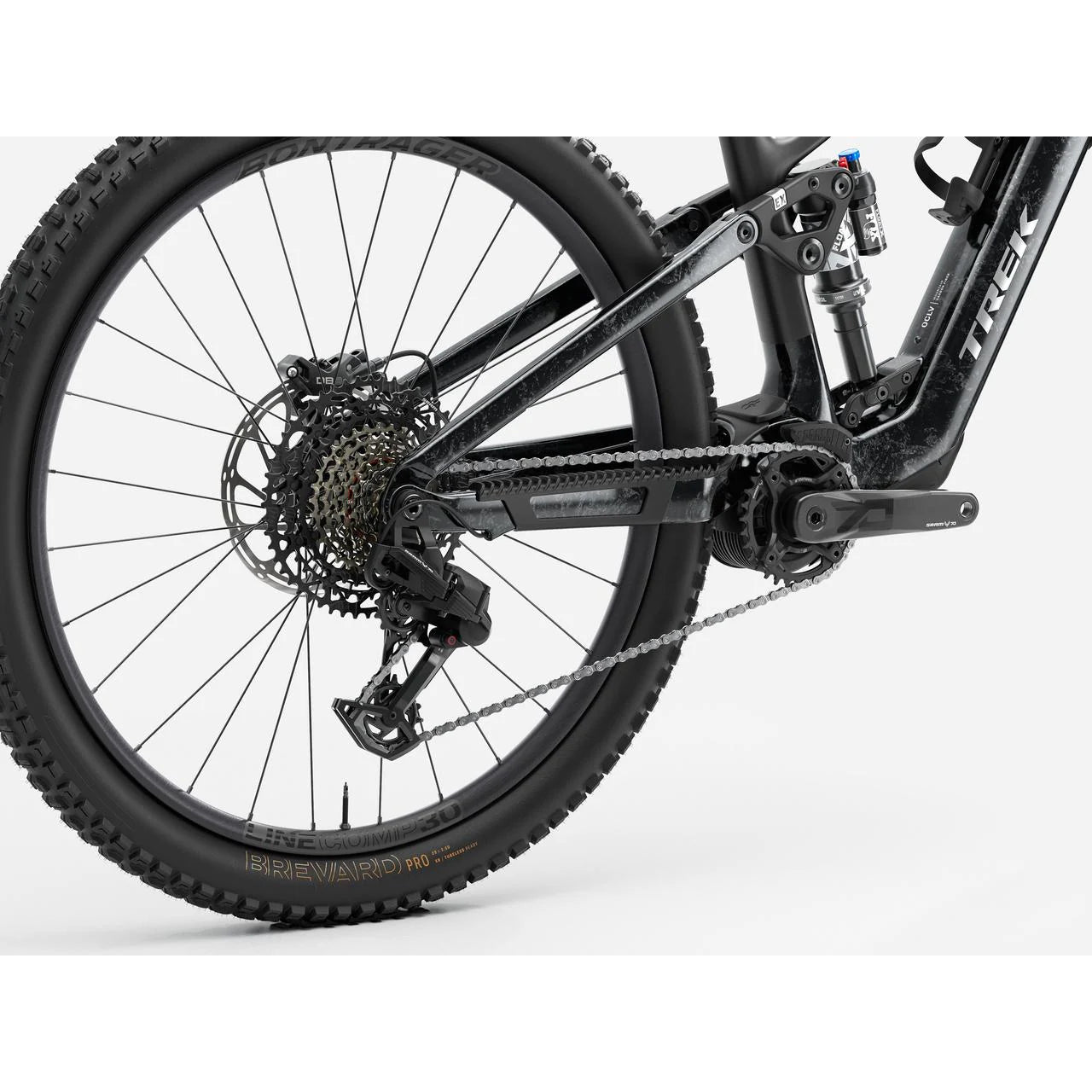

Drivetrain

Cassette SRAM Eagle XS-1270, T-Type,10-52, 12 speed

Chain SRAM Eagle 70, T-Type, 12 speed

Chainring SRAM T-Type, 32T, alloy

Rear derailleur SRAM Eagle 70, T-Type

Shifter SRAM Eagle 70, 12 speed

Brakes

Brake rotor SRAM Centerline 2.0, 6-bolt, 200mm

Brake type Hydraulic disc

Caliper SRAM DB 8 4-piston hydraulic disc // SRAM DB 8 4-piston hydraulic disc

Rotor size Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Cockpit

Grips tape Trek Line Elite, lock-on

Handlebars Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width

Saddle Bontrager Verse P3, chromoly rails

Seatpost Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 5150mm length

Stem Bontrager Elite, 35mm, 0 degree, 45mm length

Wheels

Front hub Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle

Rear hub Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12mm thru axle

Rims Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve

Tires Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"

Valves Bontrager TLR sealant, 180 ml/6 oz

Wheel size 29"

Suspension

Fork Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel

Fork brand Fox

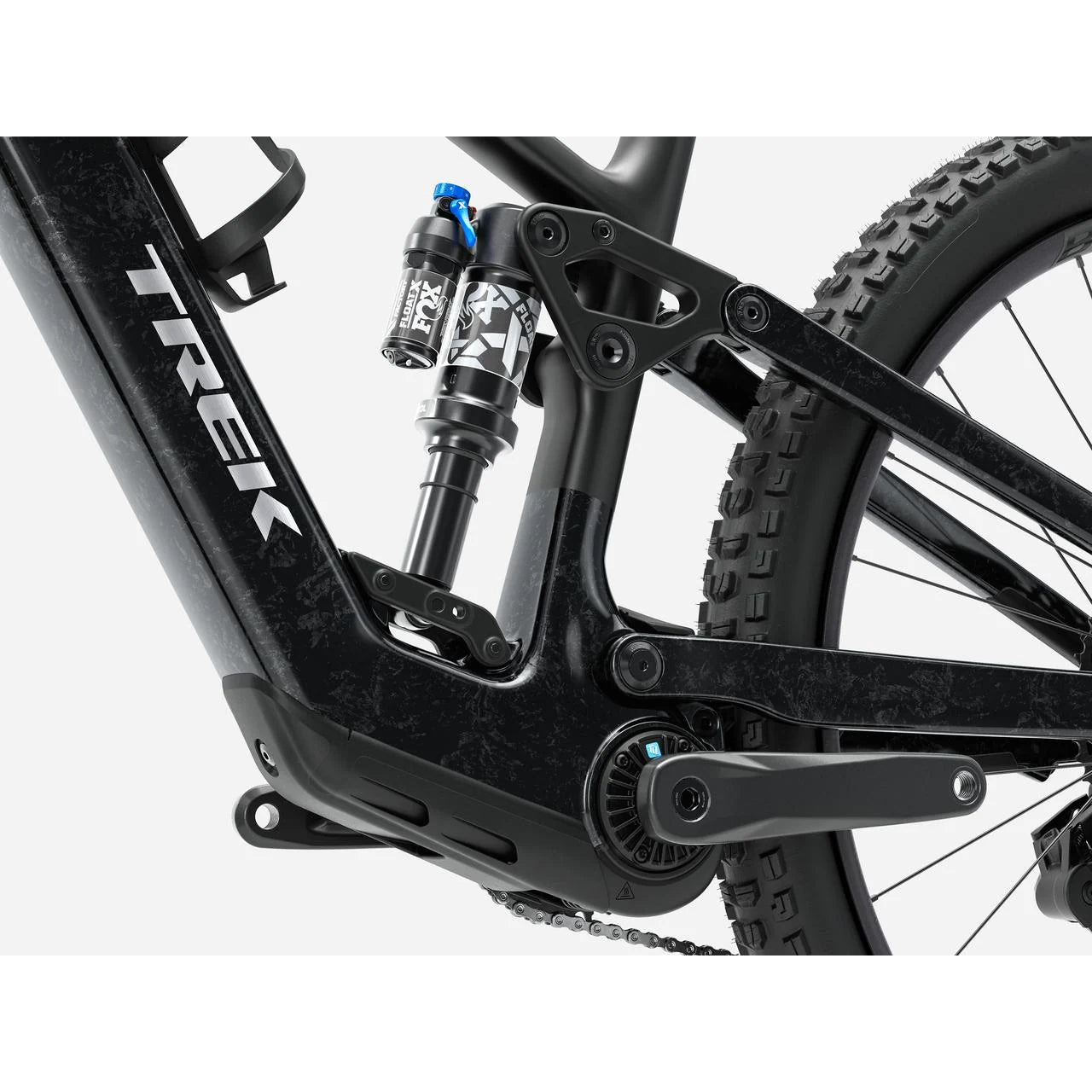

Shock Fox Performance Float X, 2-position damper, 205mm x 60mm

Shock brand Fox

Frame

Frame OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm

Frame material Carbon

Headset FSA Orbit, sealed cartridge bearing, 1-1/8' top, 1.5' bottom, 1.5 crown

Seatpost Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 5150mm length

Weight as spec d M - 19.73 kg / 43.5 lbs (with TLR sealant, no tubes)

Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

E-Bike System

Battery TQ 580Wh

Battery type 360WH

Motor TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power

Description

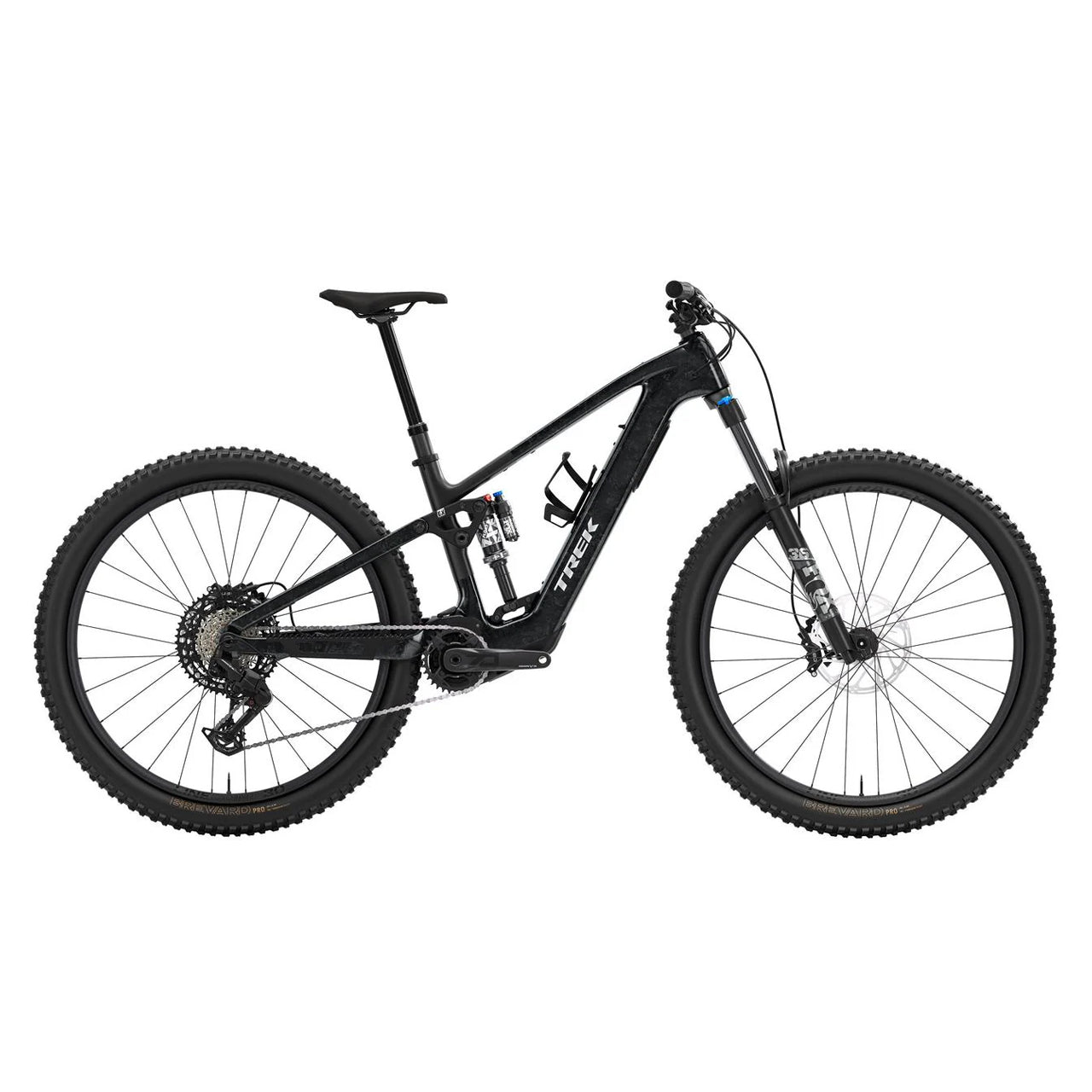

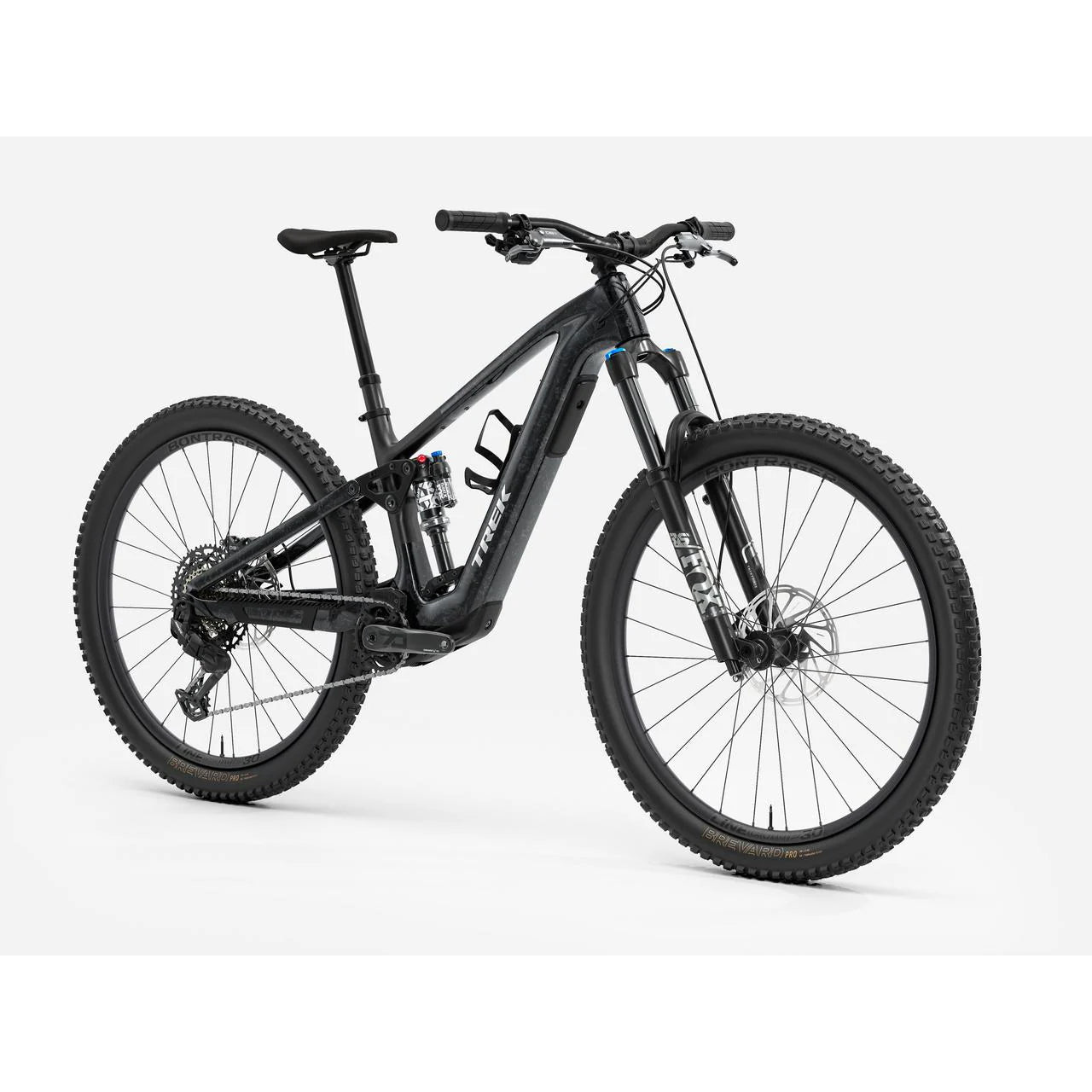

Fuel+ EX 9.7 is a carbon e-MTB that packs in adaptability for any kind of trail and any style of riding. It's equipped with the smooth and quiet boost of TQ's HPR60 motor with a 580Wh battery for bigger rides. You get the perfect balance of price and performance, with components like a Fox Rhythm 36 fork, Fox Performance Float X shock, SRAM Eagle T-Type shifting, and a Bontrager Line dropper post.

Geometry Chart

Measurement	Small	Medium	X-Large	XX-Large
Reach (mm)	431	460	510	530
Stack (mm)	624	624	651	665
Head Tube Angle (°)	64.6°	64.5°	64.5°	64.5°
Seat Tube Angle (°)	72.7°	72.6°	72.6°	72.6°
Wheelbase (mm)	1200	1232	1298	1330
Chainstay Length (mm)	441	444	447	452
Head Tube Length (mm)	110	110	140	155
Seat Tube Length (mm)	370	400	455	475
BB Drop (mm)	34	35	35	35
BB Height (mm)	339	339	339	339
Rake (mm)	44	44	44	44
Trail (mm)	13	13	13	13
Axle to Crown (mm)	624	624	651	665

Part Numbers

Size	Carbon Smoke/Lithium Grey Marble	Lichen Green/Keswick Green Splatter
Small	SKUFUE39321102E VPNTrek_5335568 UPC197216226567 MPN5335568	SKUFUE42807321R VPNTrek_5335573 UPC197216226611 MPN5335573
Medium	SKUFUE3979157E VPNTrek_5335569 UPC197216226574 MPN5335569	SKUFUE42671963R VPNTrek_5335574 UPC197216226628 MPN5335574
Large	SKUFUE3982885E VPNTrek_5335570 UPC197216226581 MPN5335570	SKUFUE42312876R VPNTrek_5335575 UPC197216226635 MPN5335575
X-Large	SKUFUE40445454E VPNTrek_5335571 UPC197216226598 MPN5335571	SKUFUE43396699R VPNTrek_5335576 UPC197216226642 MPN5335576
XX-Large	SKUFUE41468045E VPNTrek_5335572 UPC197216226604 MPN5335572	SKUFUE44587870R VPNTrek_5335577 UPC197216226659 MPN5335577

Size Chart

Trek | Mountain

Size	Rider height (in)	Rider height (cm)	Inseam (in)	Inseam (cm)
X-Small	4'9" - 5'1"	145 - 155 cm	27" - 29"	69 - 73 cm
Small	5'1" - 5'5"	155 - 165 cm	29" - 31"	74 - 78 cm
Medium	5'5" - 5'10"	165 - 177 cm	31" - 33"	79 - 83 cm
Medium/Large	5'8" - 5'11"	173 - 180 cm	32" - 34"	81 - 86 cm
Large	5'10" - 6'2"	177 - 188 cm	33" - 35"	84 - 89 cm
X-Large	6'2" - 6'5"	188 - 195 cm	35" - 36"	89 - 91 cm
XX-Large	6'5" - 6'8"	195 - 203 cm	36" - 38"	91 - 97 cm
