Sold out
Trek

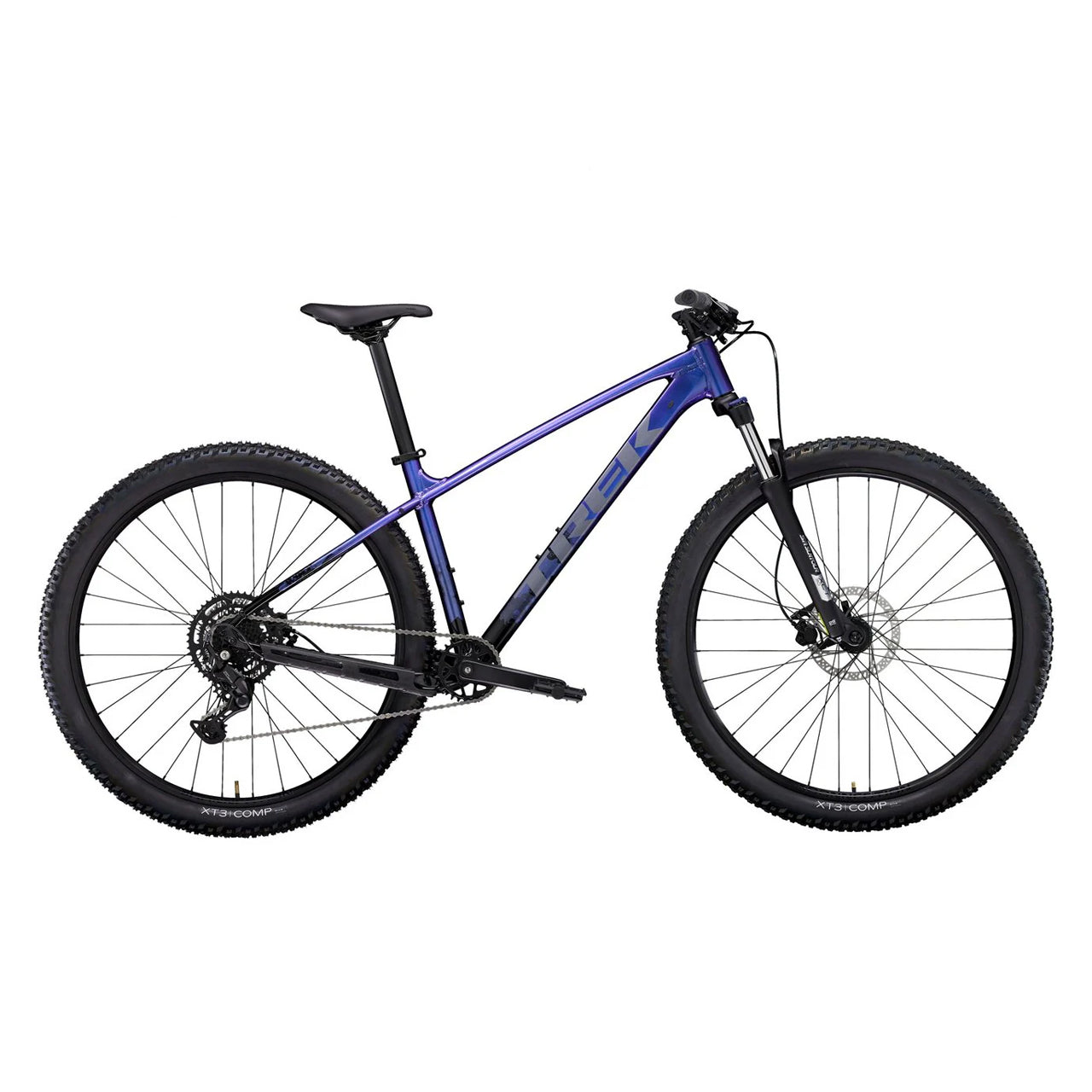

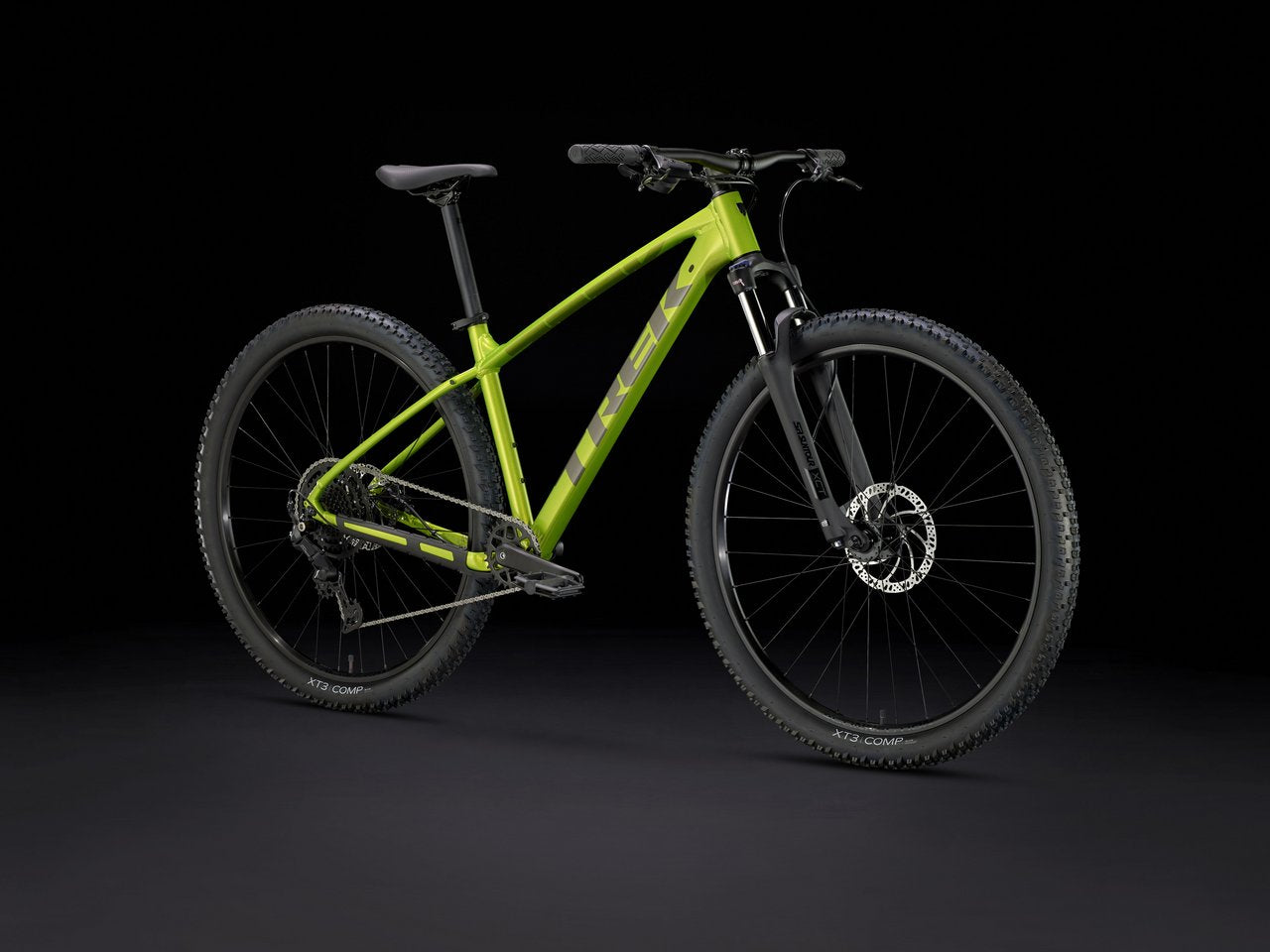

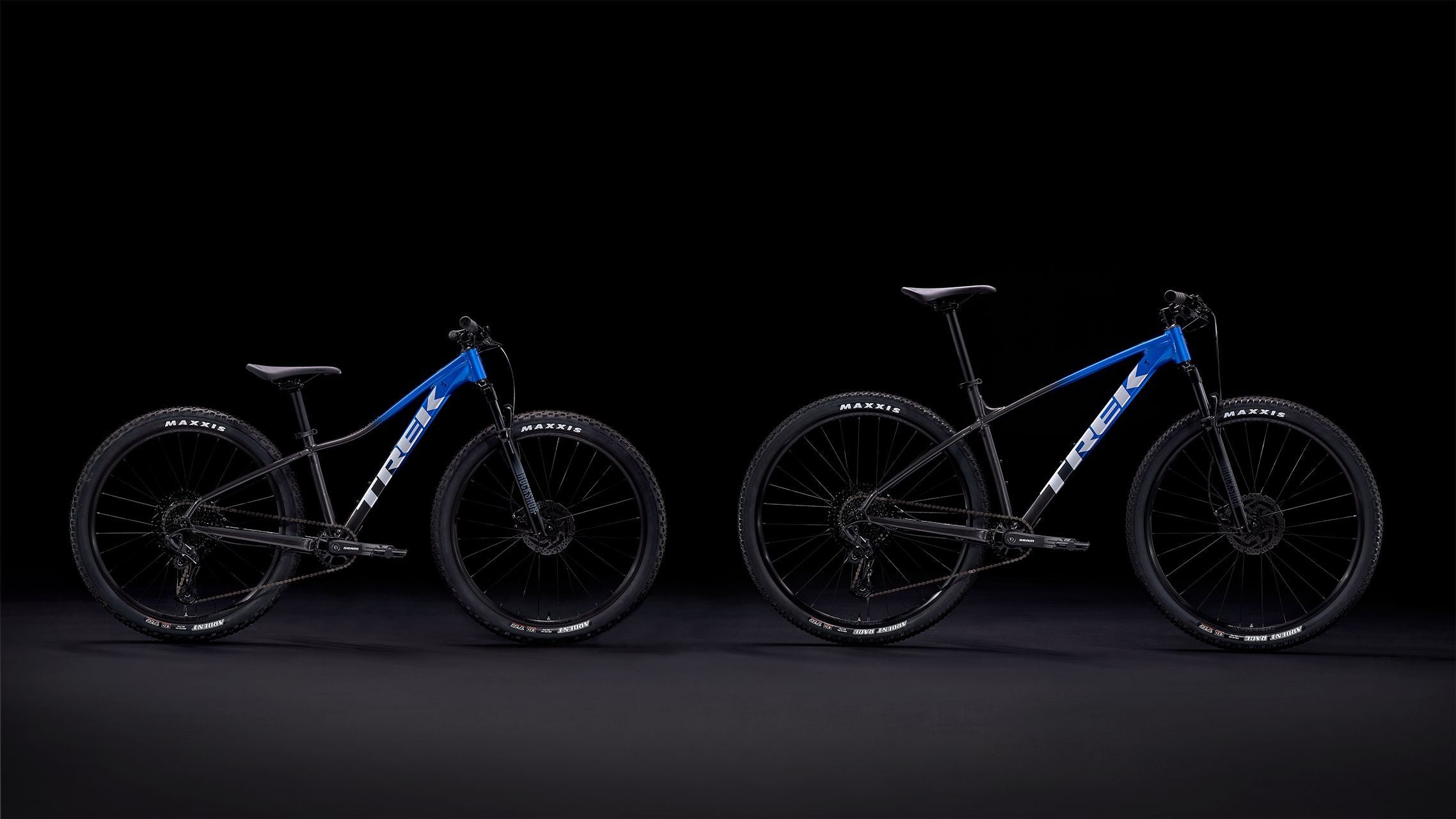

2025 | Marlin 5 Gen 3
2025 | Marlin 5 Gen 3
Regular price
$929.99
Sale price
$929.99
Regular price
$929.99
Shipping calculated at checkout.
SKU:TRE376519323
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.
Canadian shipping charges:
- Sale bikes: $200
- Standard pedal bikes over $1250: Free
- Standard pedal bikes under $1250: $100
- Electric bikes: $200
- Fat bikes: $200
- Kid's bikes: $60
Insurance charge: 1.5% insured value
We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details
Bike Specifications
Bike Specifications
Specifications are subject to change without notice
Drivetrain
Cassette
Shimano LINKGLIDE LG300, 11-46, 9 speed

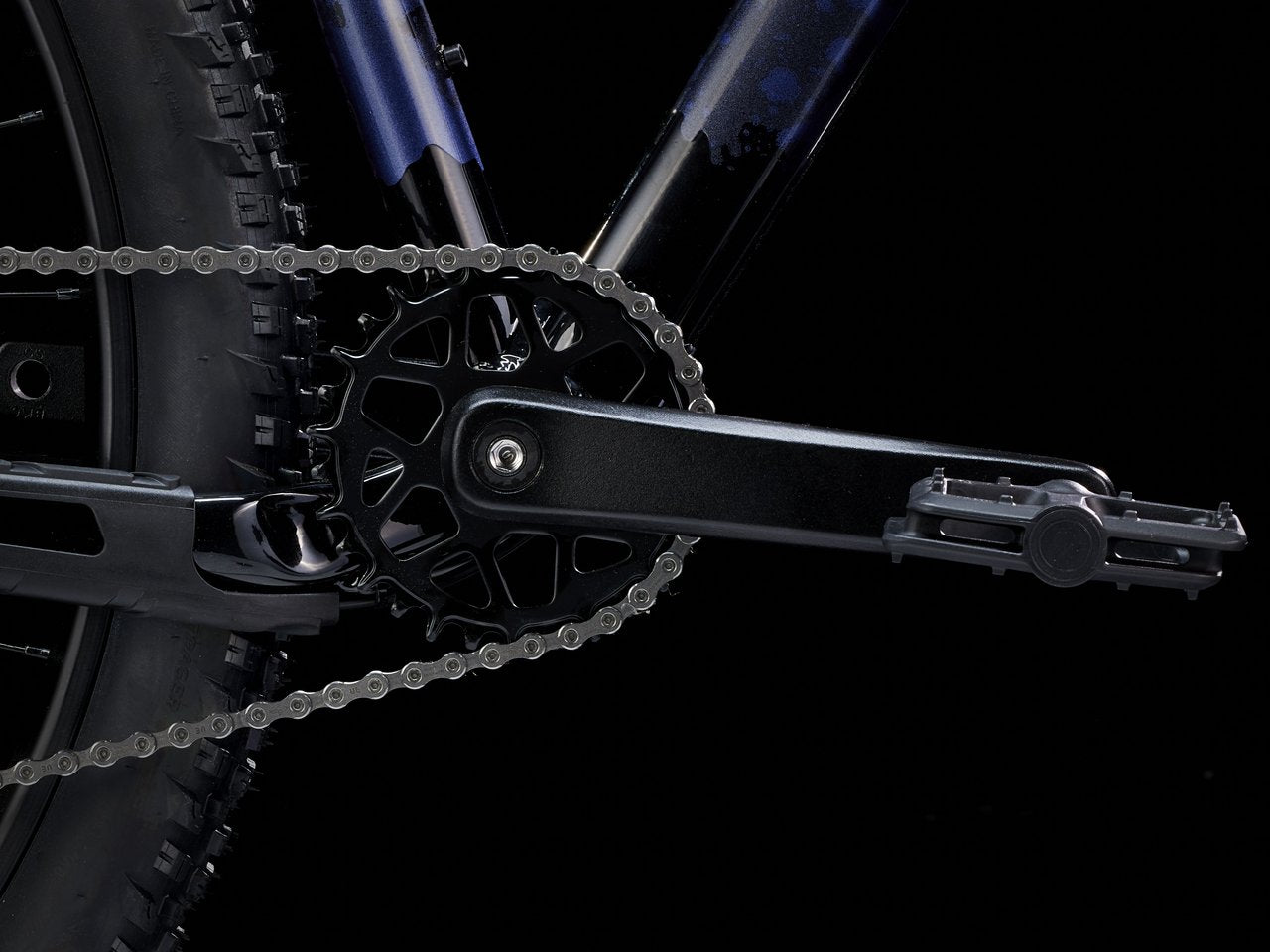

Chain
Shimano LG500

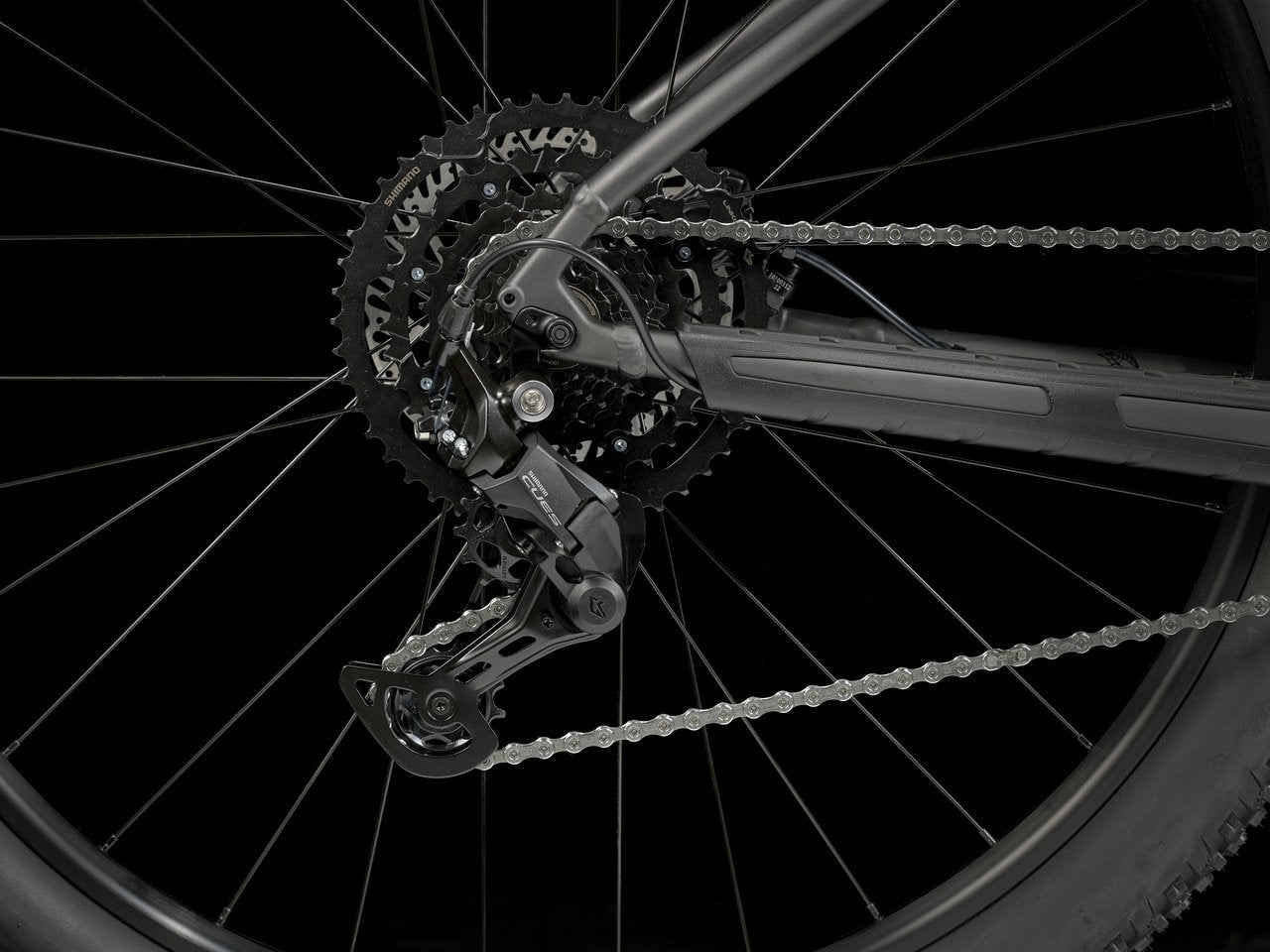

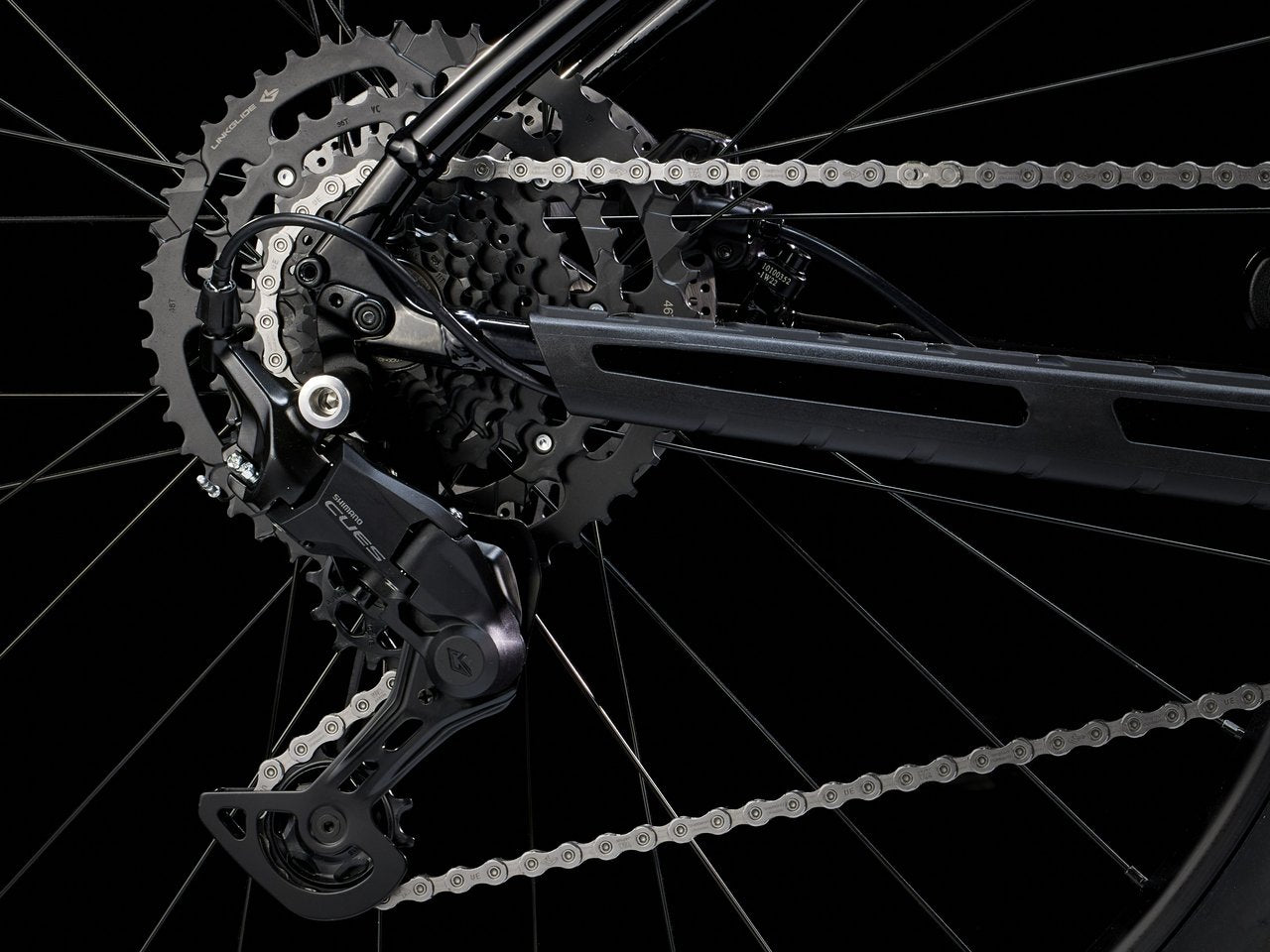

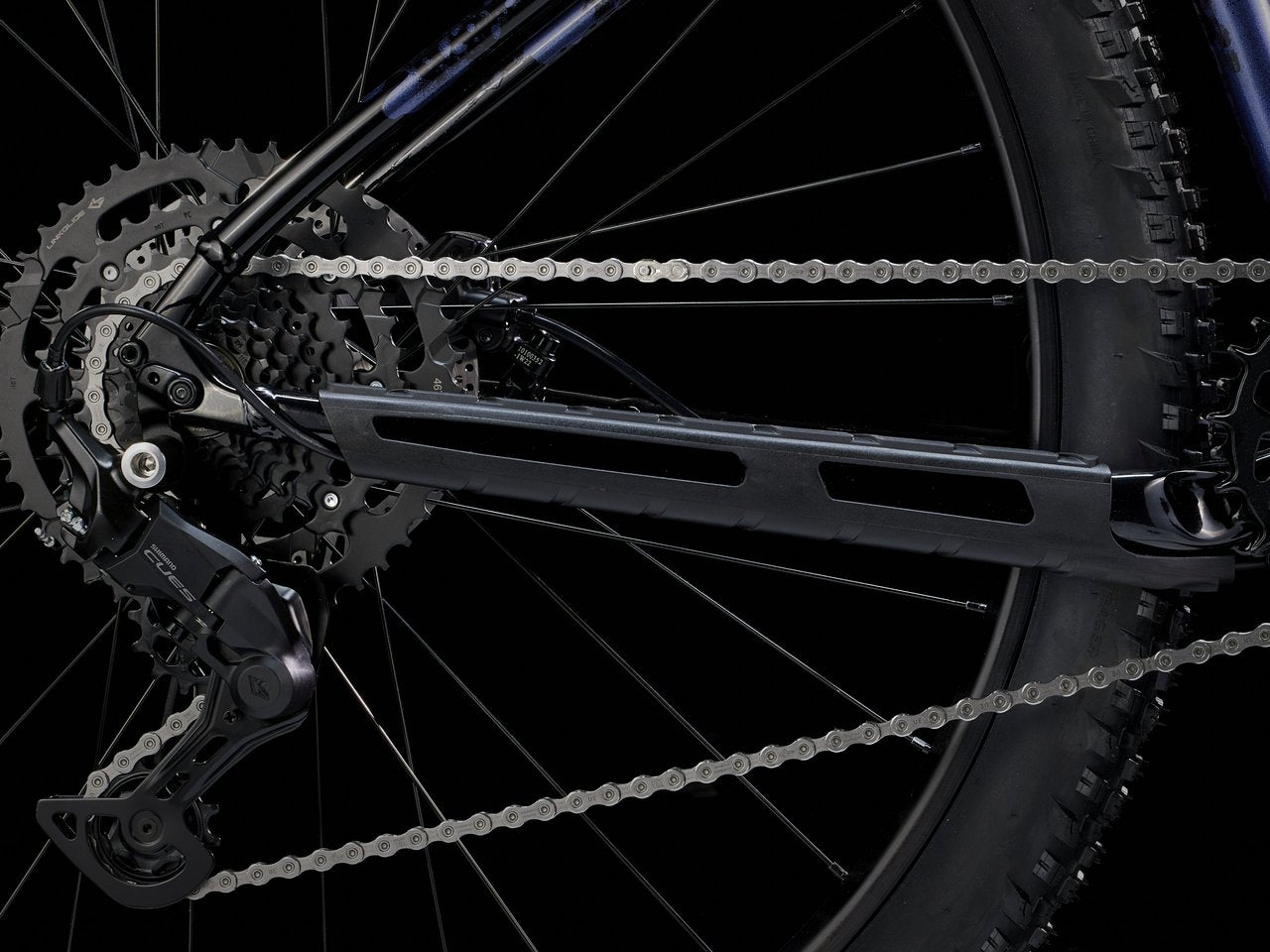

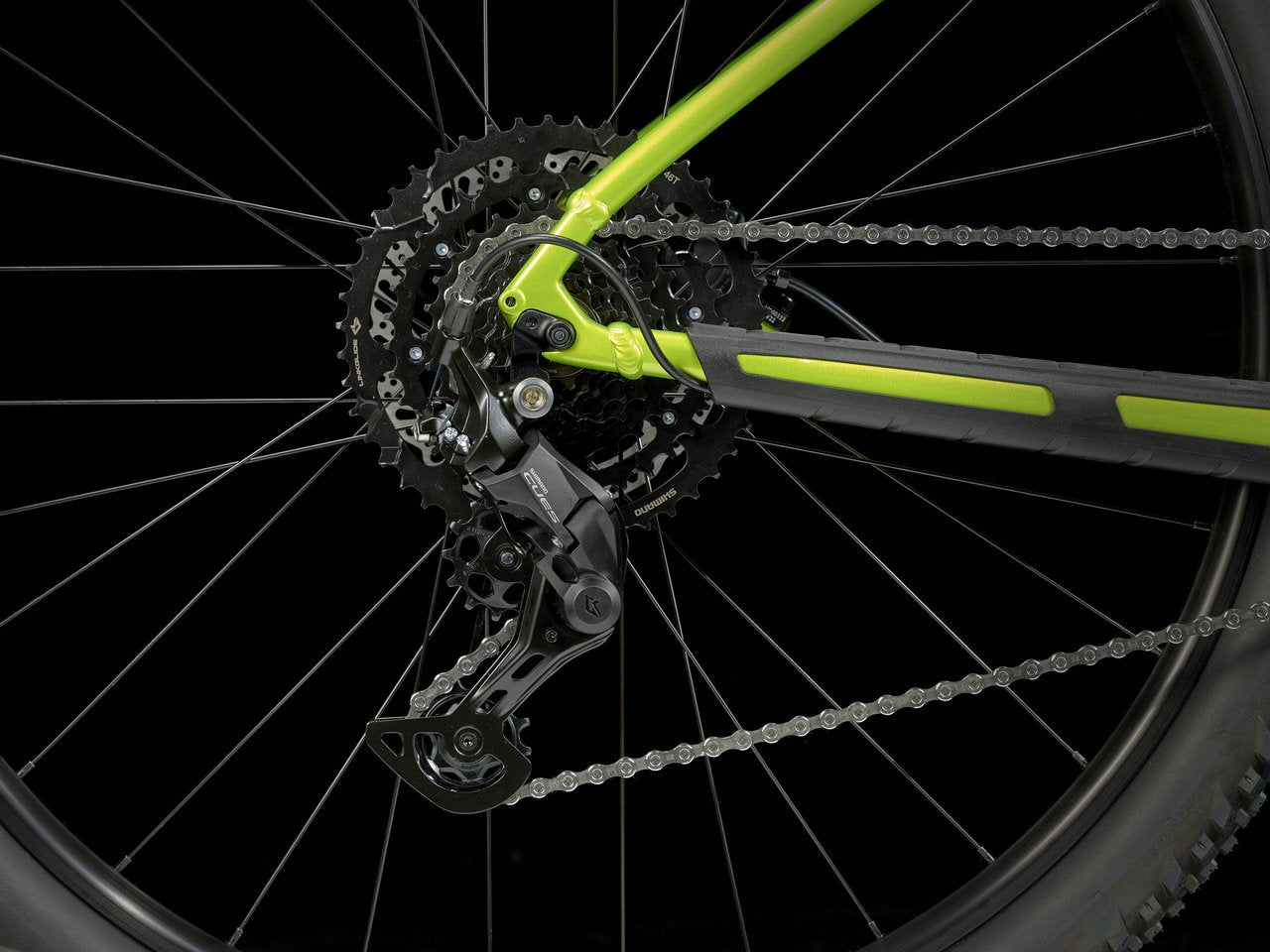

Rear derailleur
Shimano CUES U4000
Shifter
Shimano U4000, 9 speed
Brakes

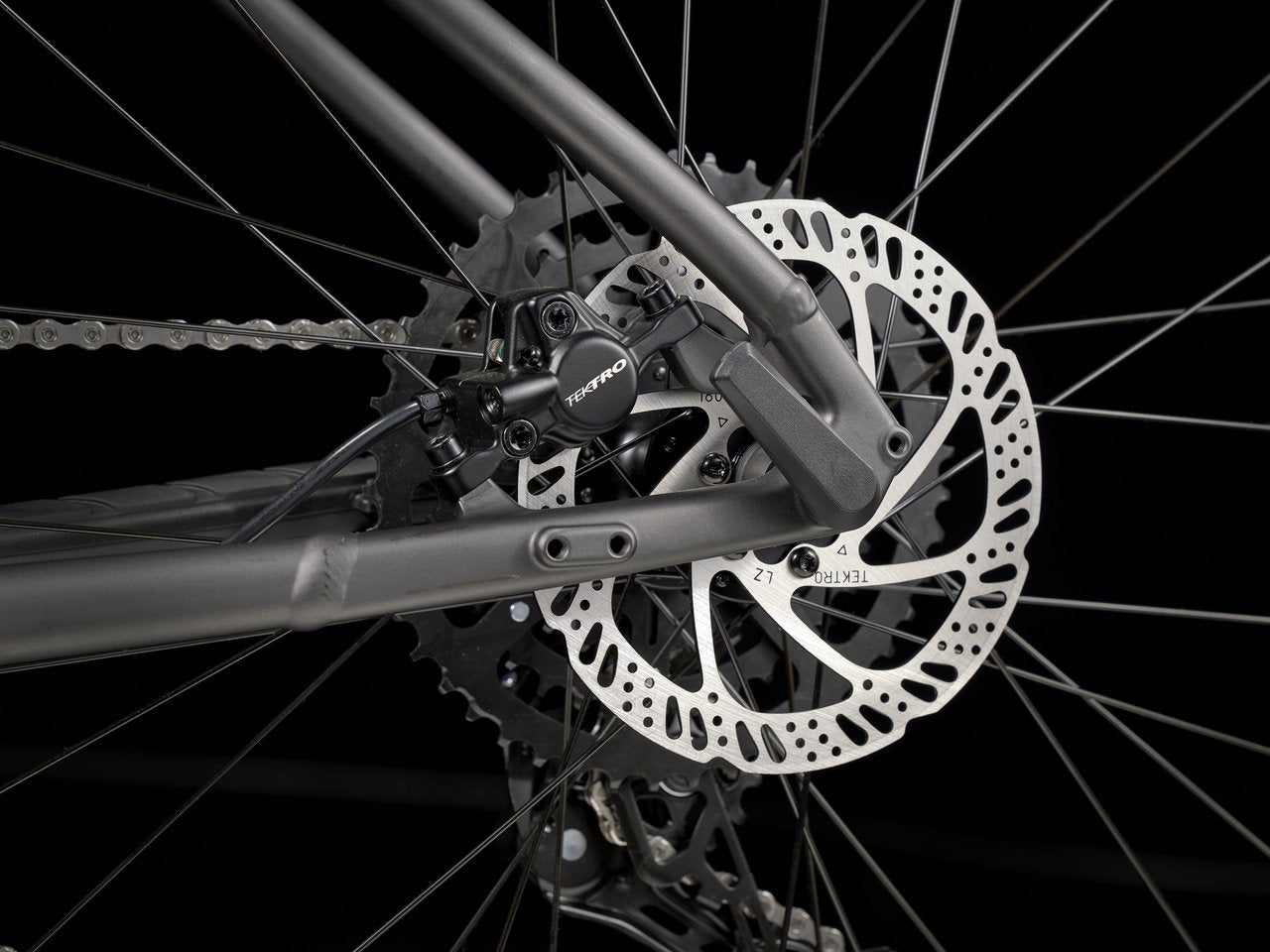

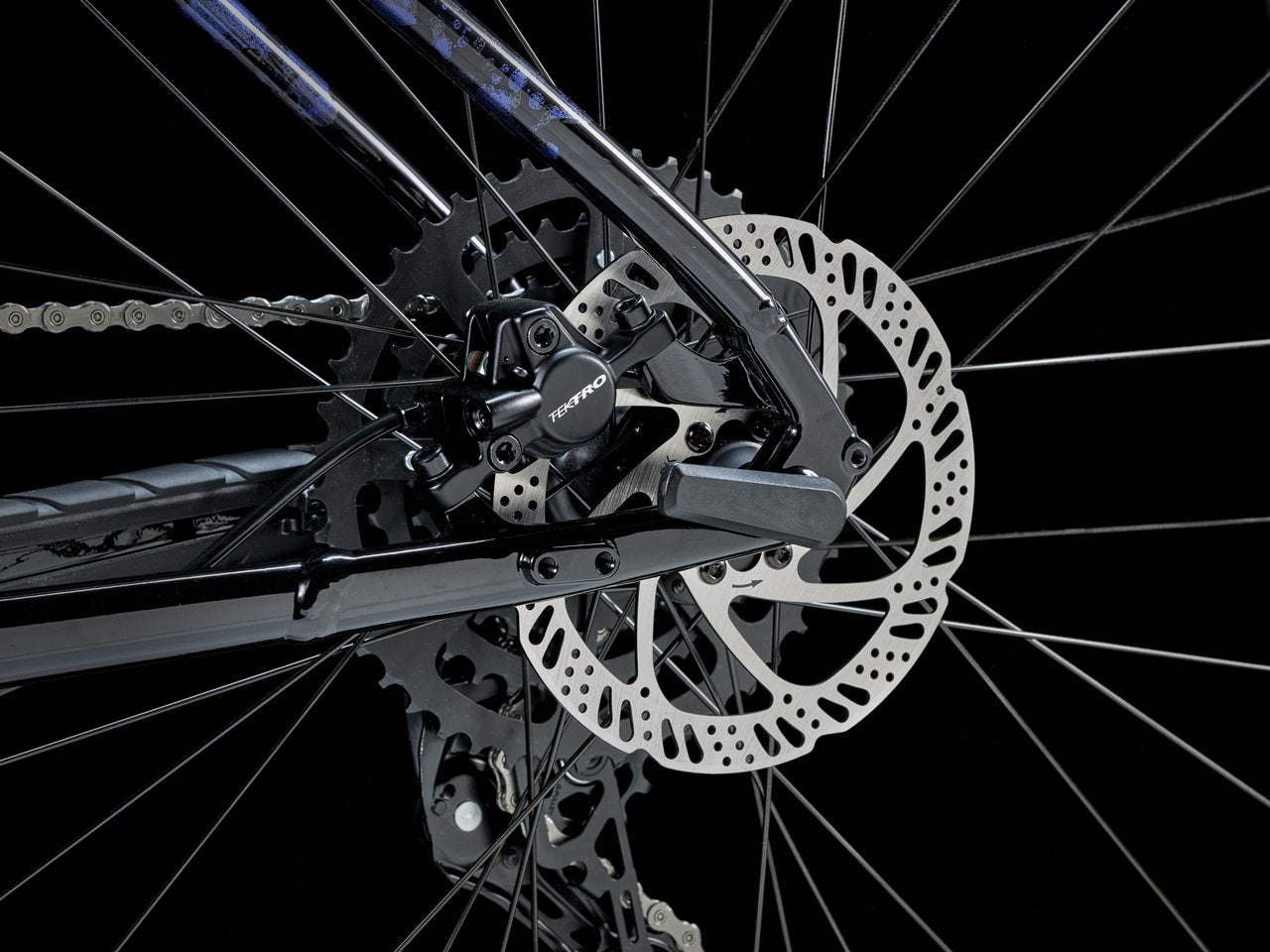

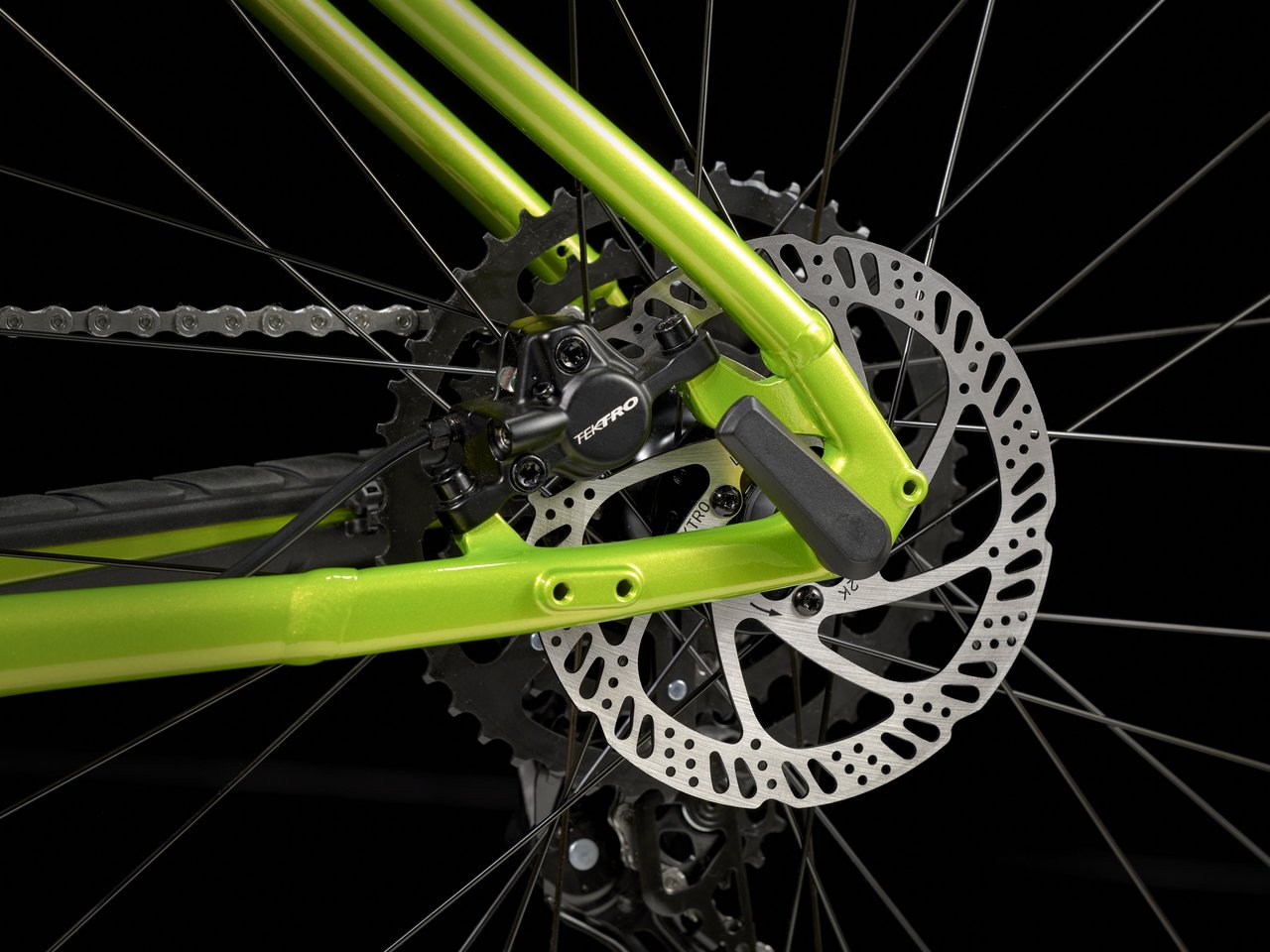

Brake rotor
Tektro, 6-bolt, 160mm
Brake type
Hydraulic disc
Cockpit
Grips tape
Bontrager XR Trail Comp, nylon lock-on
Handlebars
Bontrager alloy, 31.8mm, 15mm rise, 750mm width

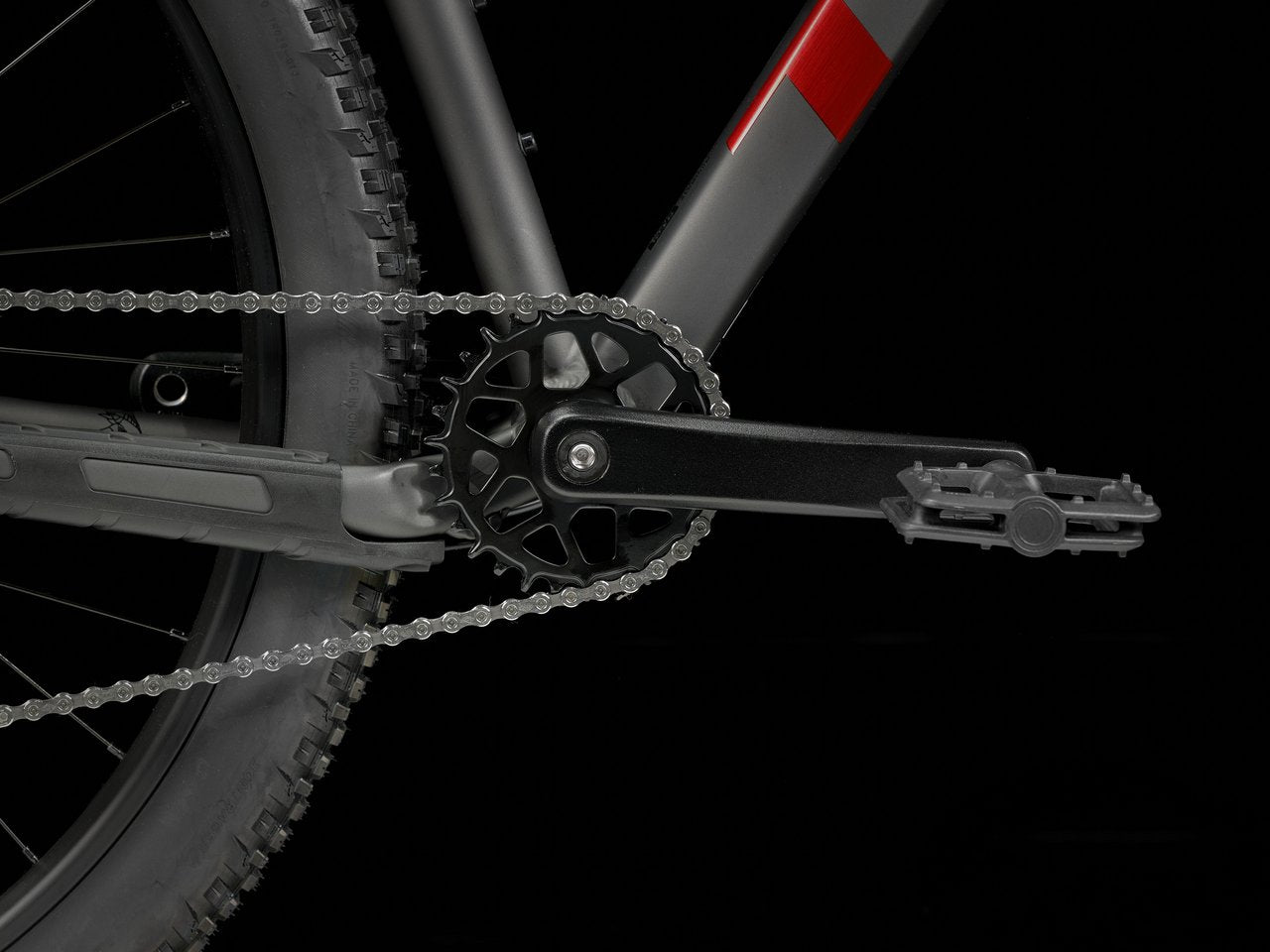

Pedals
VP-536 nylon platform
Seatpost
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
Stem
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Wheels
Front hub
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Rear hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes
14g stainless steel, black
Tires

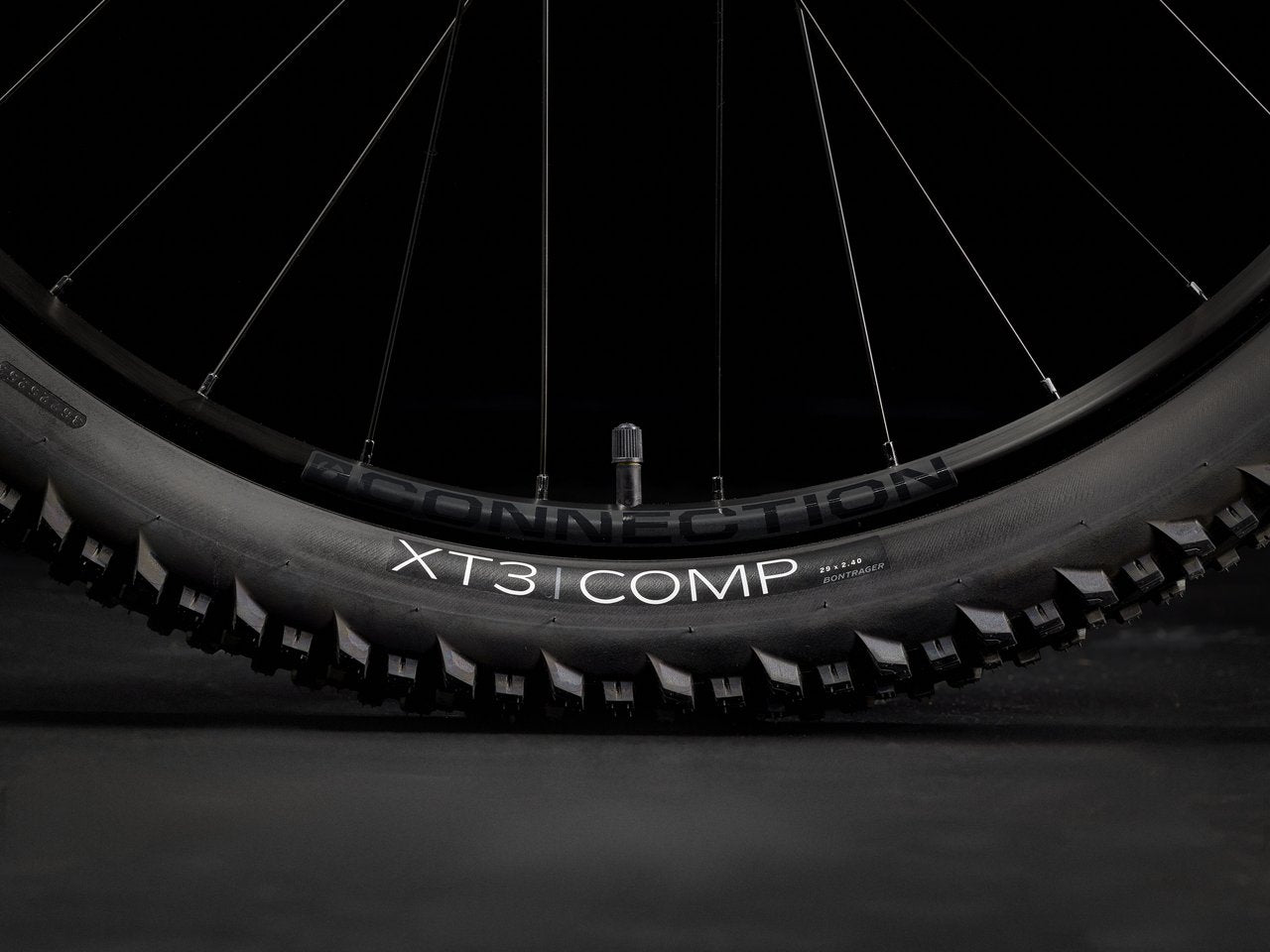

Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40'
Wheel size
Size Specific
Suspension

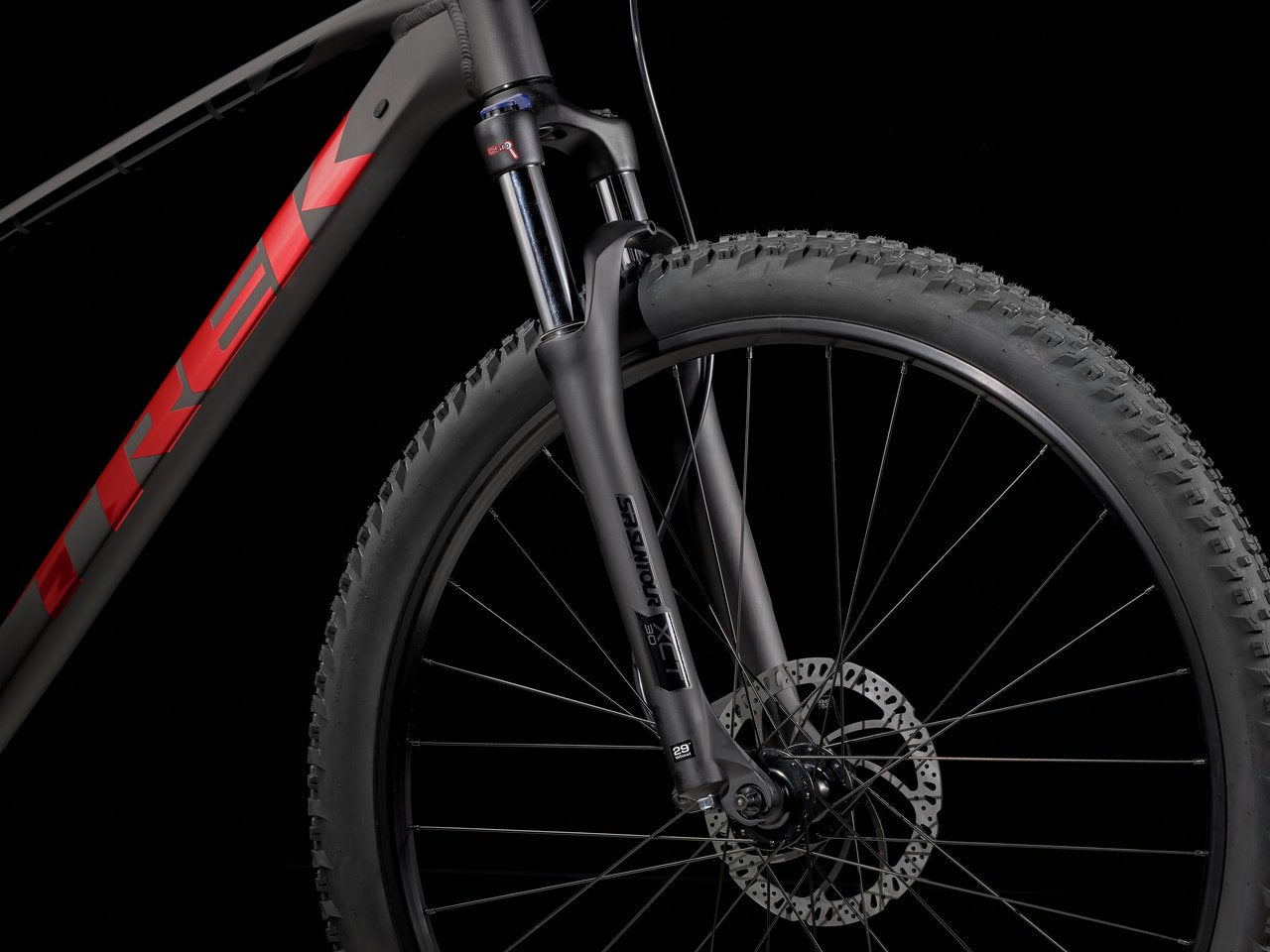

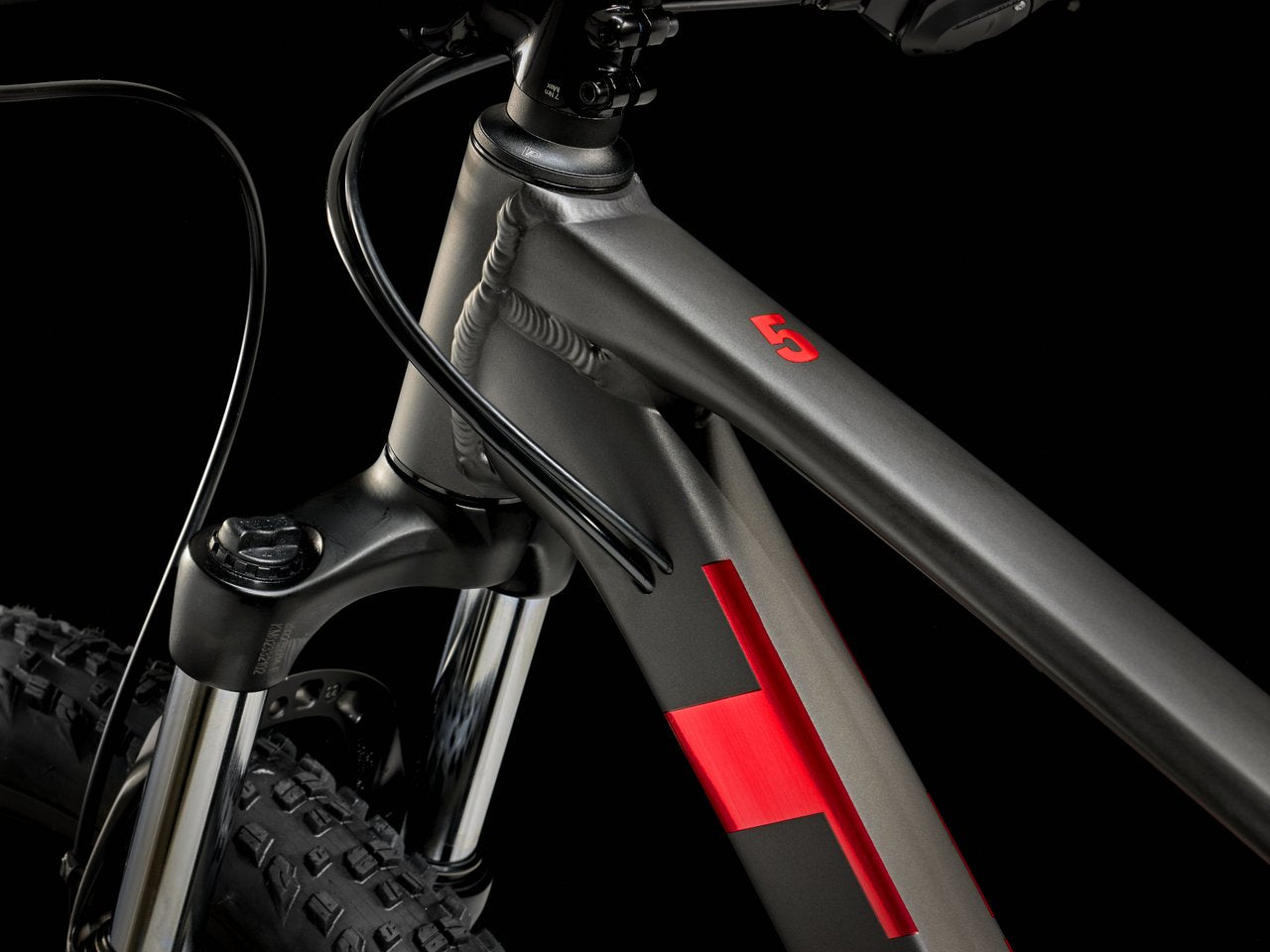

Fork

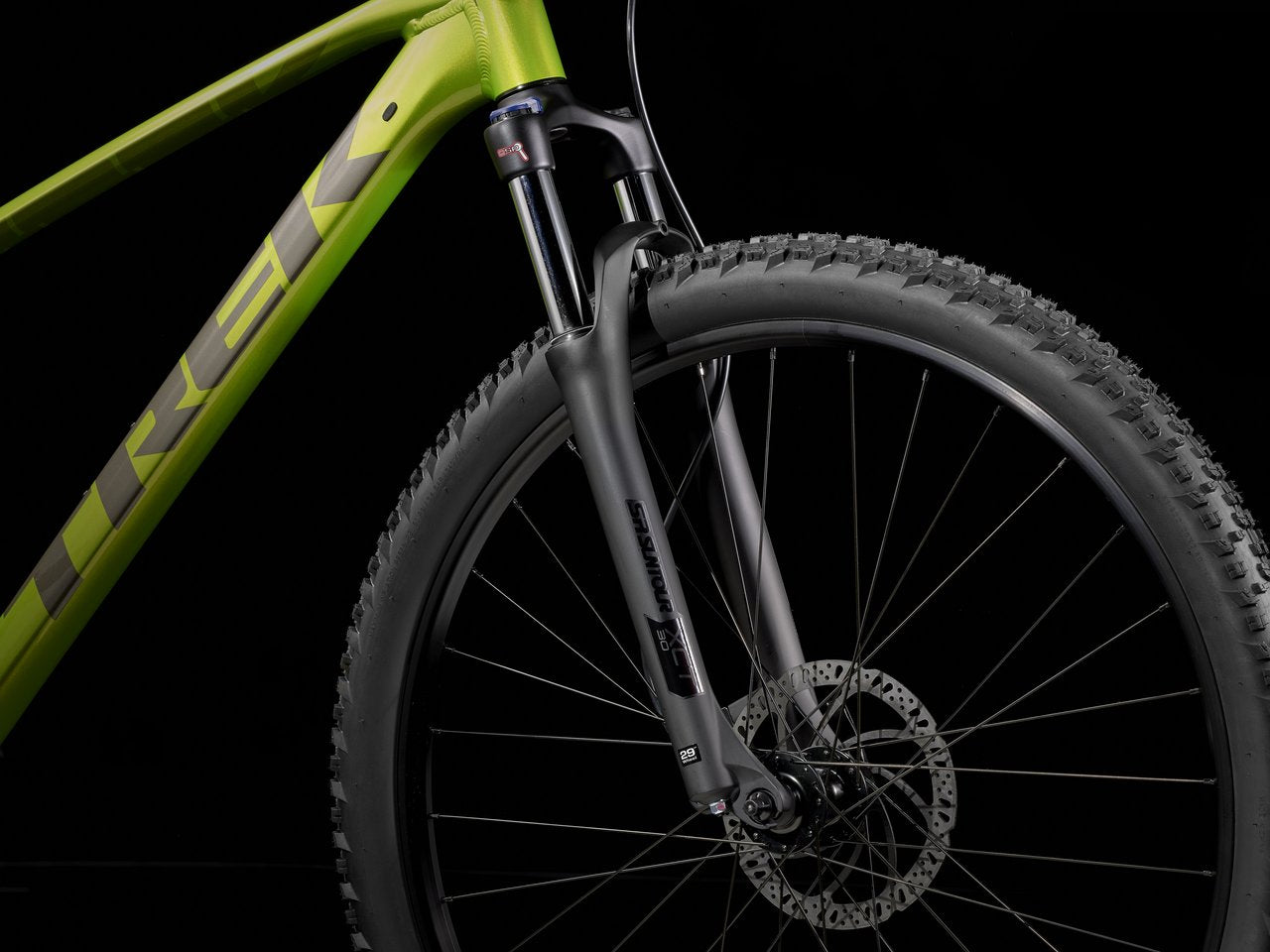

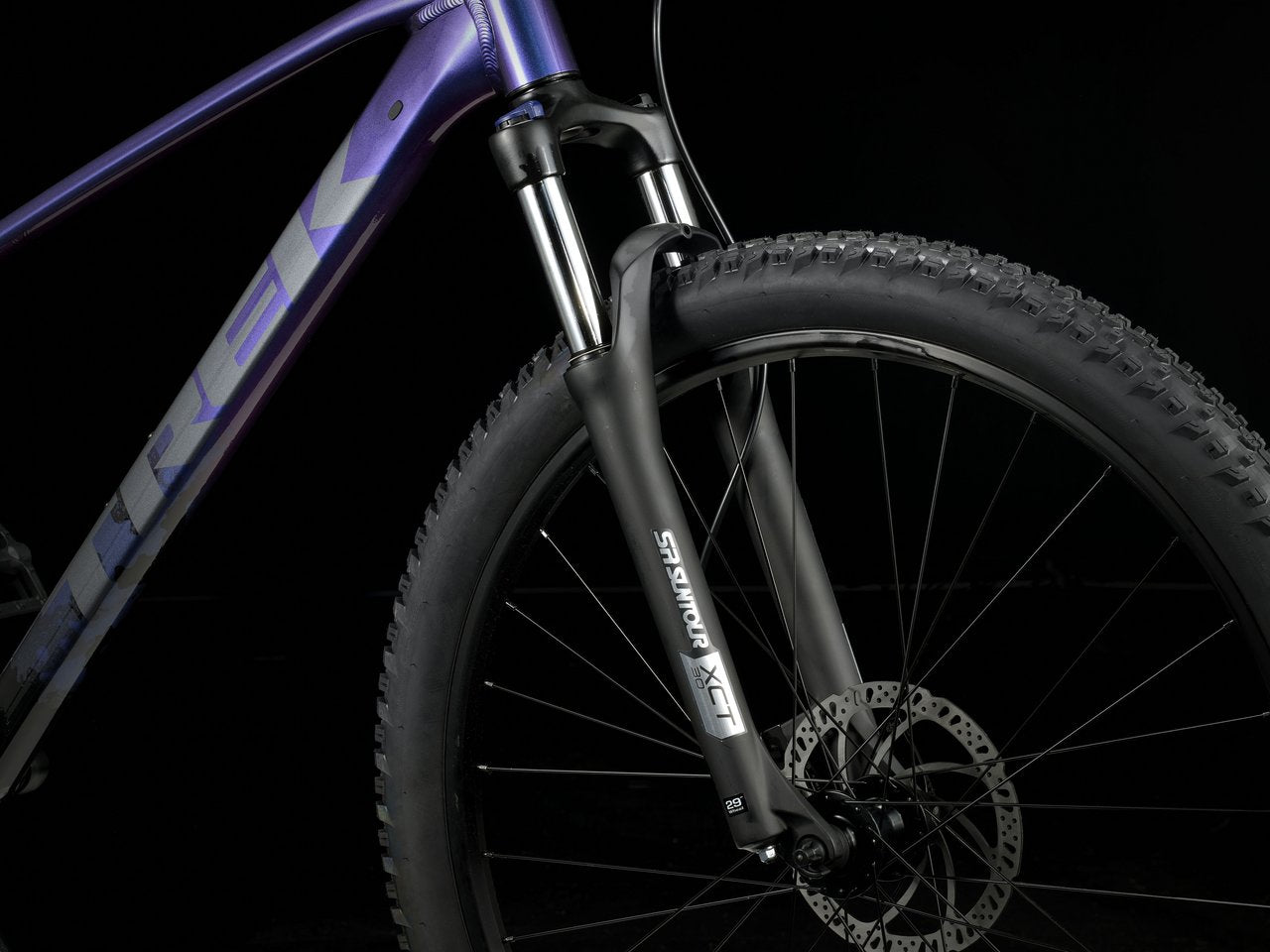

SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29" wheel, 100mm QR, 100mm travel
Fork brand
SR Suntour
Frame
Frame

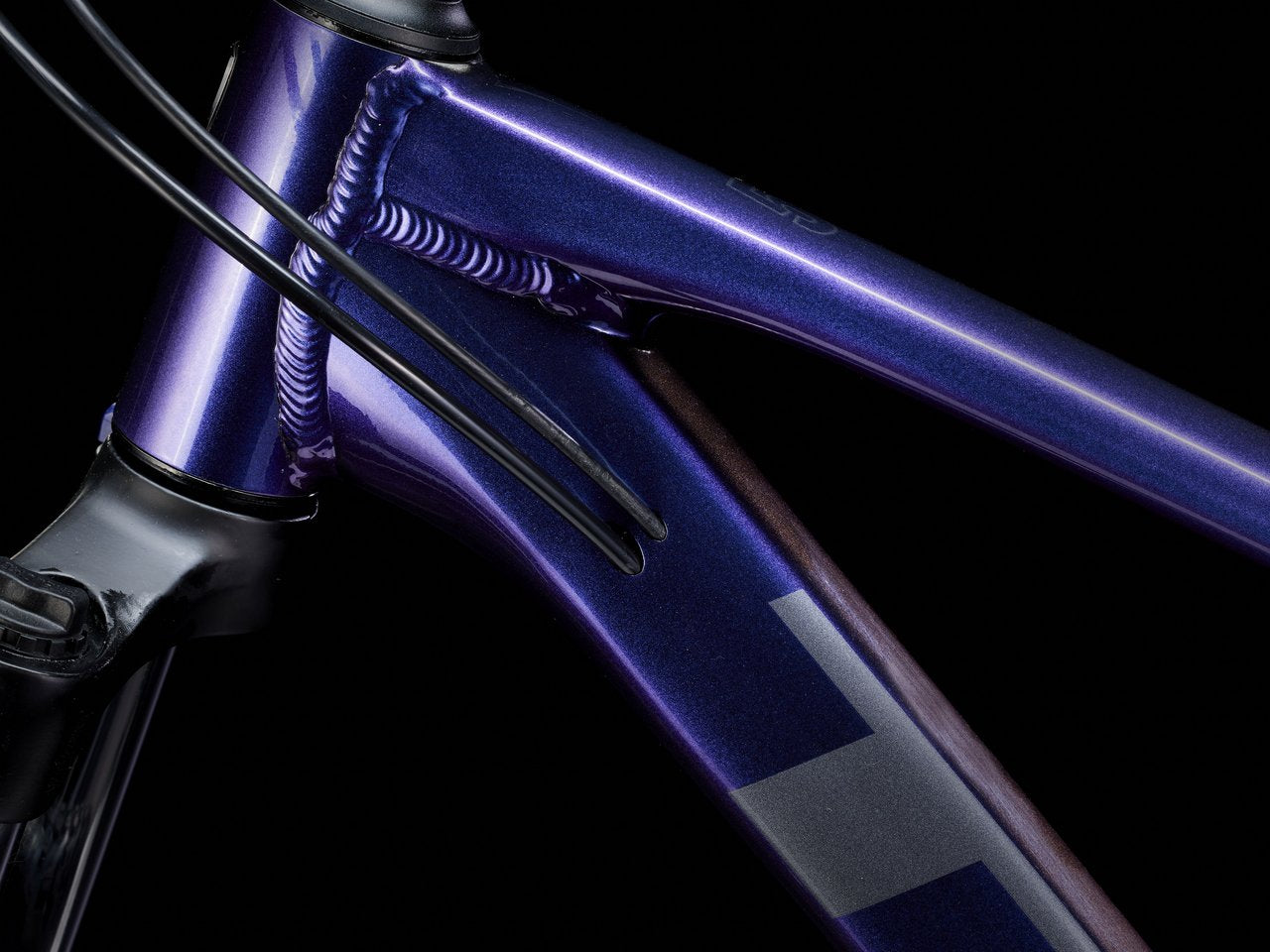

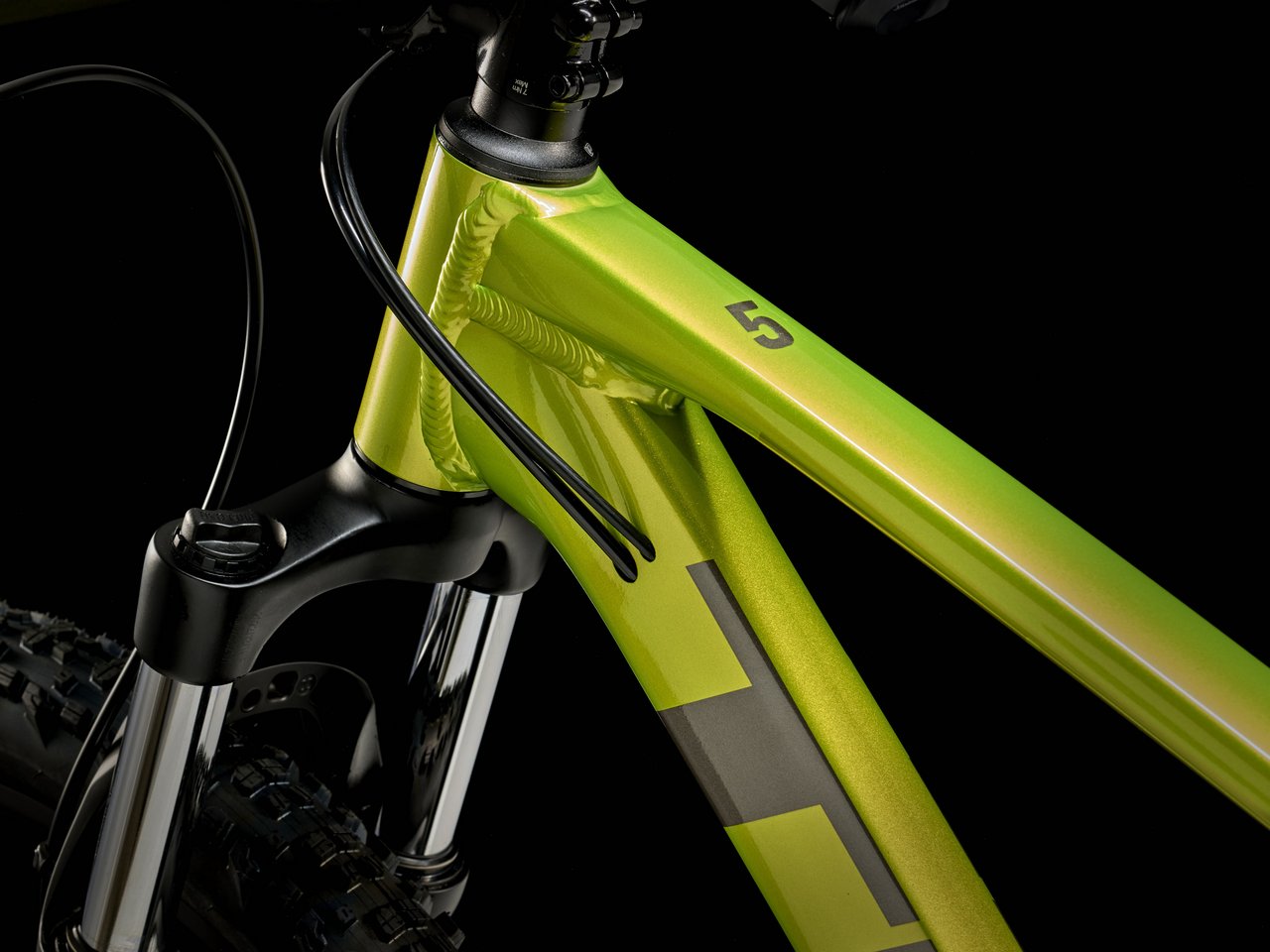

Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
Frame material
Aluminum
Headset
Semi-integrated, 1-1/8"
Platform wheel size
26" - (XXS) | 27.5" - (XS-S) | 29" - (M-XXL)
Seatpost
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
Weight as spec d
M - 15.10 kg / 33.29 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
Share this product
Description
Description

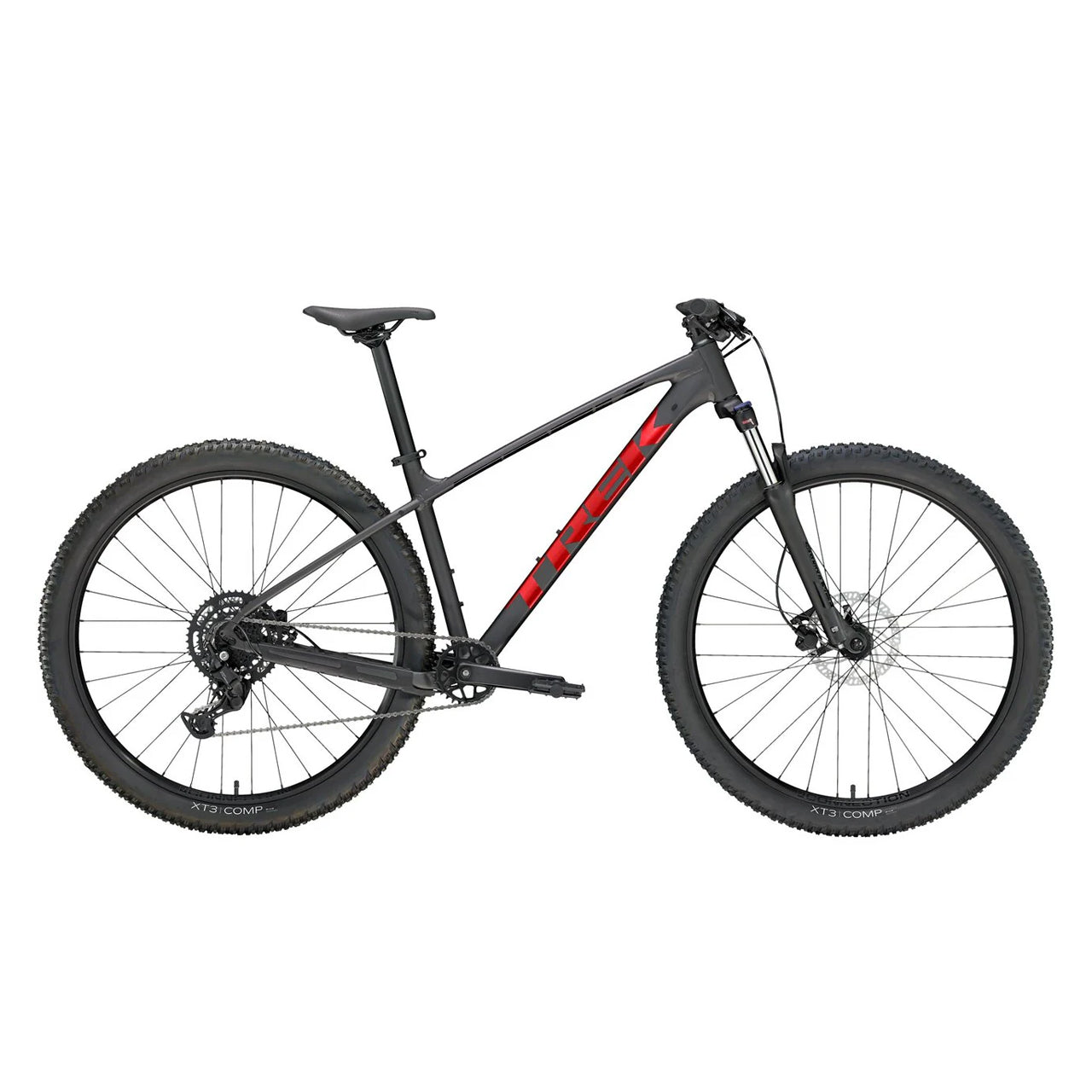

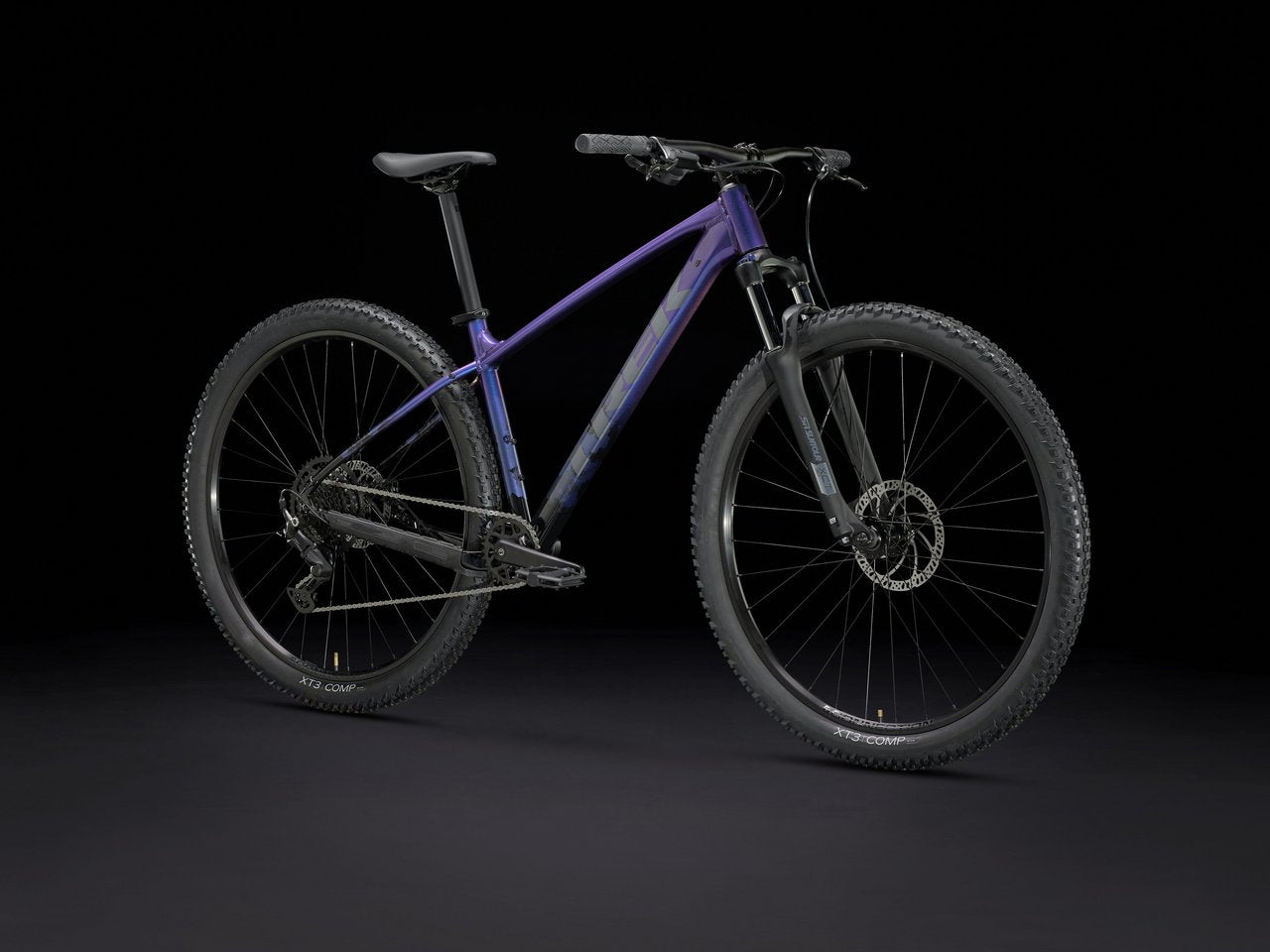

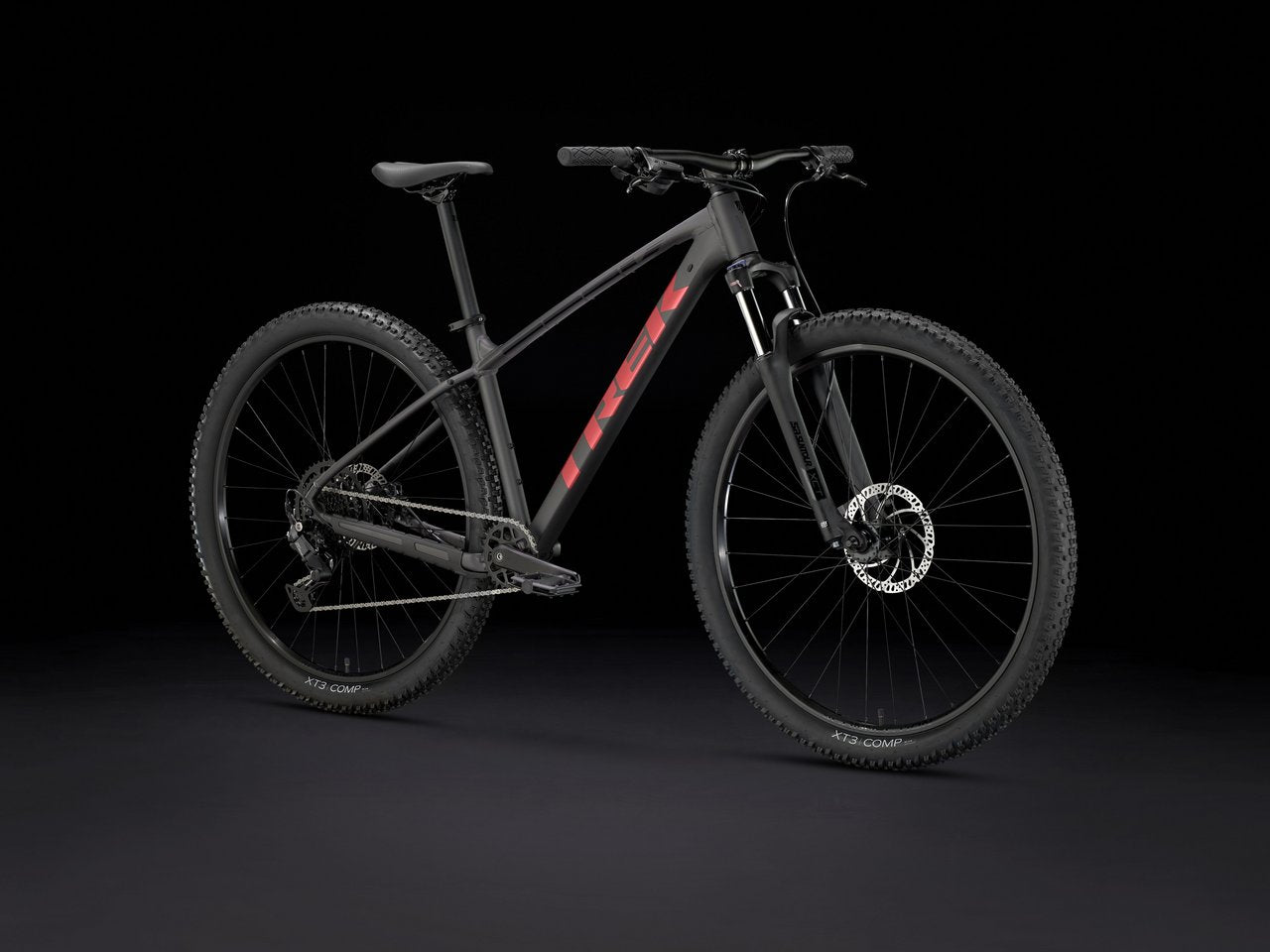

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting, and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
Geometry Chart
Geometry Chart
| Measurement | Small | Medium | Large | Medium / Large | X-Large | X-Small |
|---|---|---|---|---|---|---|
| Reach (mm) | 415 | 440 | 470 | 455 | 495 | 390 |
| Stack (mm) | 572 | 609 | 618 | 614 | 637 | 563 |
| Head Tube Angle (°) | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| Seat Tube Angle (°) | 73.8° | 73.4° | 73.4° | 73.4° | 73.4° | 73.8° |
| Wheelbase (mm) | 1121 | 1163 | 1197 | 1180 | 1230 | 1092 |
| Chainstay Length (mm) | 433 | 438 | 438 | 438 | 438 | 433 |
| Head Tube Length (mm) | 100 | 105 | 115 | 110 | 135 | 90 |
| Seat Tube Length (mm) | 370 | 420 | 450 | 435 | 500 | 340 |
| BB Drop (mm) | 45 | 60 | 60 | 60 | 60 | 45 |
| BB Height (mm) | 313 | 308 | 308 | 308 | 308 | 313 |
| Rake (mm) | 42 | 46 | 46 | 46 | 46 | 42 |
| Trail (mm) | 11 | 11 | 11 | 11 | 11 | 11 |
| Axle to Crown (mm) | 572 | 609 | 618 | 614 | 637 | 563 |
Part Numbers
Part Numbers

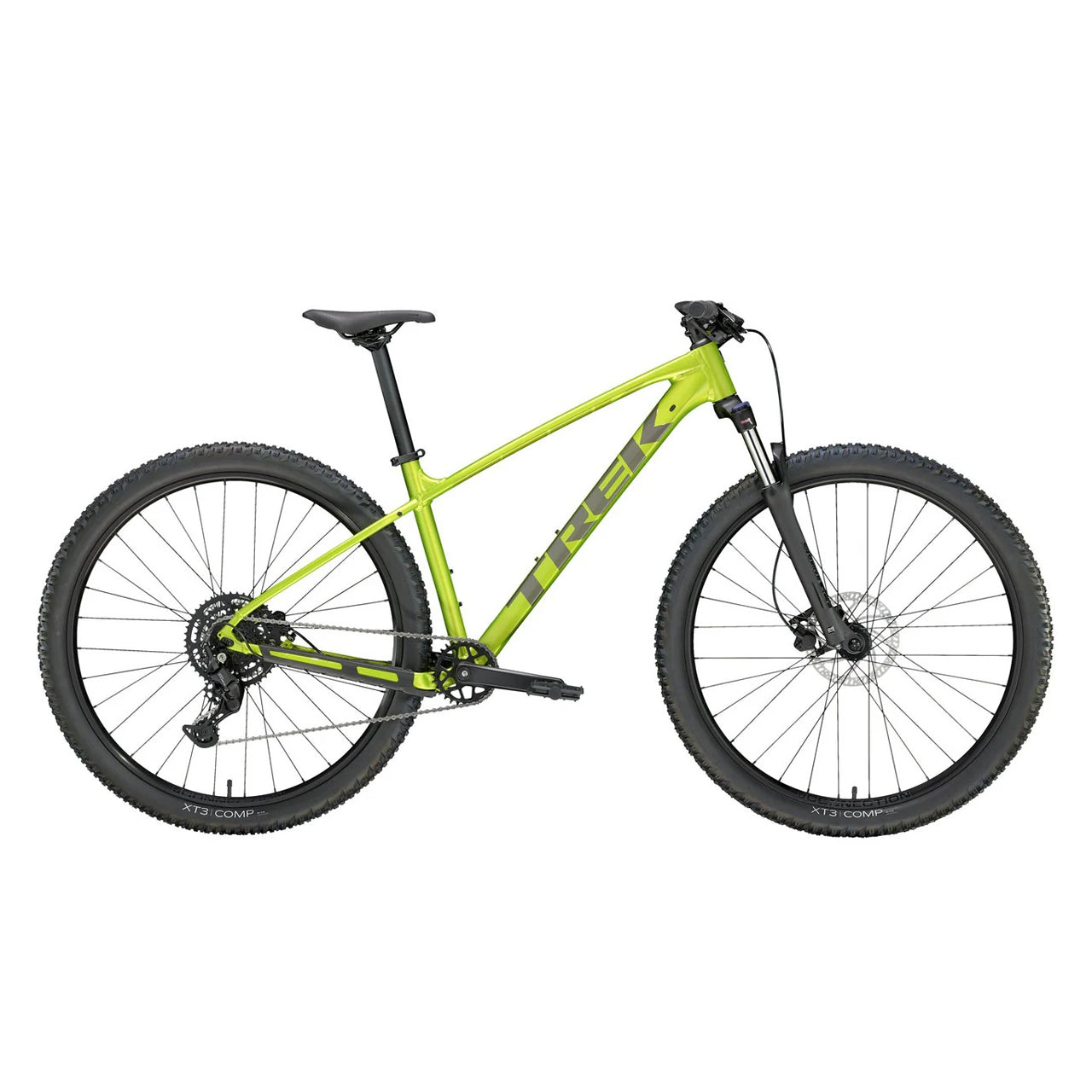

| Size / Wheelsize | Power Surge | Matte Dnister Black | Purple Flip To Trek Black Fade |
|---|---|---|---|
| Small / 27.5" |
SKUTRE297475283
VPNTrek_5292523
UPC768682160671
MPN5292523
|
SKUTRE363945483
VPNTrek_5292507
UPC768682139332
MPN5292507
|
SKUTRE445671863
VPNTrek_5292531
UPC768682160831
MPN5292531
|
| Small / 29" | — | — | — |
| Medium / 27.5" | — | — | — |
| Medium / 29" |
SKUTRE287680933
VPNTrek_5292524
UPC768682160756
MPN5292524
|
SKUTRE35159633
VPNTrek_5292508
UPC768682139158
MPN5292508
|
SKUTRE436136573
VPNTrek_5292532
UPC768682160657
MPN5292532
|
| Large / 27.5" | — | — | — |
| Large / 29" |
SKUTRE281404433
VPNTrek_5292526
UPC768682160817
MPN5292526
|
SKUTRE354990873
VPNTrek_5292510
UPC768682139073
MPN5292510
|
SKUTRE436595433
VPNTrek_5292534
UPC768682160718
MPN5292534
|
| Medium/Large / 27.5" | — | — | — |
| Medium/Large / 29" |
SKUTRE297732363
VPNTrek_5292525
UPC768682160732
MPN5292525
|
SKUTRE368766263
VPNTrek_5292509
UPC768682139356
MPN5292509
|
SKUTRE445251213
VPNTrek_5292533
UPC768682160794
MPN5292533
|
| X-Large / 27.5" | — | — | — |
| X-Large / 29" |
SKUTRE296134483
VPNTrek_5292527
UPC768682160916
MPN5292527
|
SKUTRE368355363
VPNTrek_5292511
UPC768682139318
MPN5292511
|
SKUTRE447931663
VPNTrek_5292535
UPC768682160633
MPN5292535
|
| X-Small / 27.5" |
SKUTRE305417743
VPNTrek_5292522
UPC768682160695
MPN5292522
|
SKUTRE376519323
VPNTrek_5292506
UPC768682139011
MPN5292506
|
SKUTRE45711123
VPNTrek_5292530
UPC768682161074
MPN5292530
|
| X-Small / 29" | — | — | — |
Size Chart
Size Chart
Trek | Mountain
| Size | Rider height (in) | Rider height (cm) | Inseam (in) | Inseam (cm) |
|---|---|---|---|---|
| X-Small | 4'9" - 5'1" | 145 - 155 cm | 27" - 29" | 69 - 73 cm |
| Small | 5'1" - 5'5" | 155 - 165 cm | 29" - 31" | 74 - 78 cm |
| Medium | 5'5" - 5'10" | 165 - 177 cm | 31" - 33" | 79 - 83 cm |
| Medium/Large | 5'8" - 5'11" | 173 - 180 cm | 32" - 34" | 81 - 86 cm |
| Large | 5'10" - 6'2" | 177 - 188 cm | 33" - 35" | 84 - 89 cm |
| X-Large | 6'2" - 6'5" | 188 - 195 cm | 35" - 36" | 89 - 91 cm |
| XX-Large | 6'5" - 6'8" | 195 - 203 cm | 36" - 38" | 91 - 97 cm |
