FOX Factory Series 34 - 2022

FOX Factory Series 34
  • Color: Gloss Orange
  • Color: Gloss Orange
  • Color: Gloss Orange
  • Color: Gloss Black
  • Color: Gloss Black
  • Color: Gloss Black
$899.00 - $1,399.00
$1,249.99 - $1,399.00
Wheel Size:
29
Please select options

Details

THE HARD CHARGING DO IT ALL TRAIL FORK

Smoother, lighter, more tunable, and more capable than ever before; when it comes to a do-it-all trail fork the 34 is in a class of its own.

34 is the ultimate trail companion. Featuring an EVOL air spring, choice of dampers, and a lightweight yet robust chassis, you can count on 34 to get up and down the mountain, every time.

Our GRIP2 damper is the benchmark for unparalleled ride quality and ultra-precise adjustability. GRIP2 includes our patented Variable Valve Control (VVC) technology which allows for external fine-tuning of suspension performance. GRIP2 achieves with the twist of a knob what typically requires the time-consuming and complicated task of completely disassembling and reassembling the fork.




As a fork compresses, the air volume within the lower legs decreases, increasing air pressure. The more the fork compresses, the more pressure increases. This effect can have the unintended consequence of preventing full travel from being achieved. Our lower leg channels help alleviate this issue by dramatically increasing air volume within the lower legs and thereby reducing the amount of additional unintended pressure ramping.

Another benefit of these channels is that lower leg bath oil is circulated to the upper reaches of the lower legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its travel.

Stiffness-to-weight is the ultimate metric for bicycle design. Engineers invest countless hours poring over every ounce of material in an effort to optimize this critical ratio. The all-new 34 pulls out all the stops, shaving every possible gram while making sure not to compromise the stiffness or strength requirements of modern trail riding.

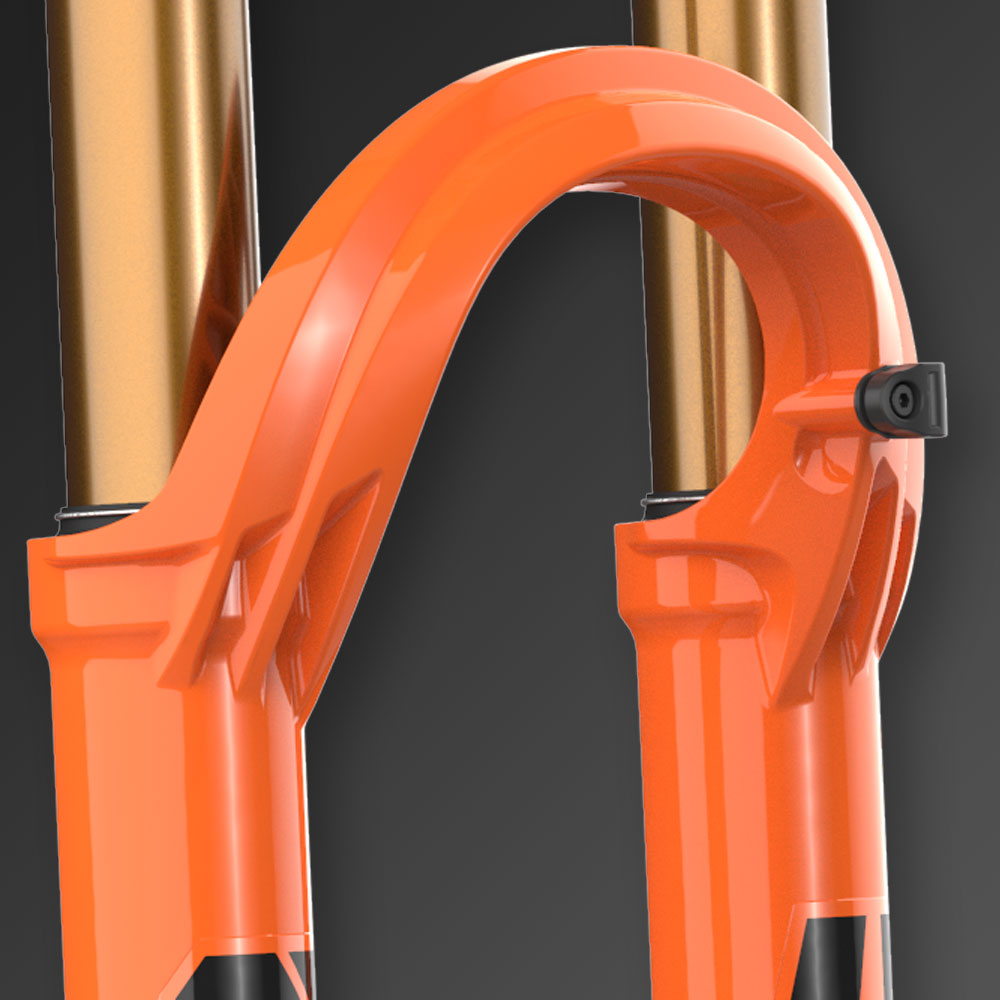

Modern frame designs and geometry trends require modern suspension design solutions. The arch design is designed to pair perfectly with modern trail bikes. Head tube profiles have grown larger and larger, and fork offsets shorter and shorter. Our new arch shape takes this need into account by jutting forward to provide ample headtube clearance at full compression. State-of-the-art computer modeling techniques helped us to create an organic lower leg shape that optimizes stiffness with the absolute minimal amount of material.

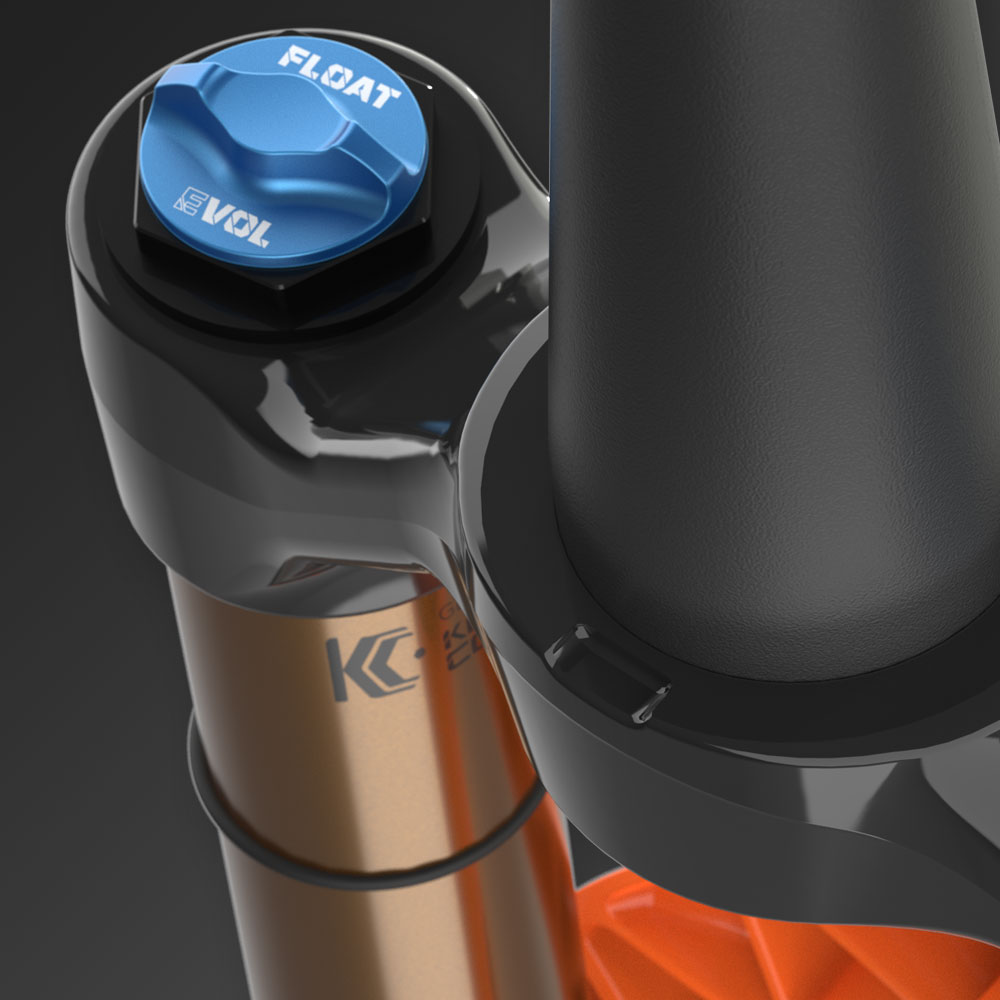

Returning with the same legendary suppleness and longevity, the EVOL air spring in 34’s now has an enlarged negative air spring to assist with mid-stroke support.

New for 2022, the 34 SC comes with the option to tune the negative air spring with a volume spacer.

Specs

Travel 130 / 140
Wheel Size 29
Brake Compatibility 180 direct Post Mount, Up to 203 compatible
Steerer Diameter/Material 1.5 Taper
Stanchion Diameter/Materials Kashima Coat
Dropouts Kabolt 110 / 15QR x 110
Spring FLOAT EVOL Air spring
Damper GRIP 2 | FIT 4
Weight 3.83 lb / 1738g g (F-S, 34, 29”, 130mm Travel, Kabolt 110, 3 Pos-Adj)*

* Subject to change without notice.

Videos

2022 Fox 34

2022 Fox 34

Part Numbers

Option UPC MPN Store SKU
QR / Gloss Orange / GRIP 2 / 44mm / 140mm / 29 821973419022 910-21-003 FOX73993566M
Kabolt / Gloss Black / GRIP 2 / 44mm / 130mm / 29 821973457154 910-21-088 20291548342M
Kabolt / Gloss Black / GRIP 2 / 44mm / 140mm / 29 821973457109 910-21-082 20225835452P
Kabolt / Gloss Black / GRIP 2 / 51mm / 130mm / 29 821973457161 910-21-089
Kabolt / Gloss Black / GRIP 2 / 51mm / 140mm / 29 821973457130 910-21-085
QR / Gloss Black / GRIP 2 / 44mm / 130mm / 29 821973419077 910-21-008 FOX77596491M
QR / Gloss Black / GRIP 2 / 44mm / 140mm / 29 821973419008 910-21-001 FOX77271976M
QR / Gloss Black / GRIP 2 / 51mm / 130mm / 29 821973419084 910-21-009 FOX77103284M
QR / Gloss Black / GRIP 2 / 51mm / 140mm / 29 821973419039 910-21-004 FOX77842749M
QR / Gloss Black / FIT4 / 44mm / 130mm / 29 821973419060 910-21-007 FOX71950049M
QR / Gloss Black / FIT4 / 44mm / 140mm / 29 821973419015 910-21-002 FOX71414693M
QR / Gloss Black / FIT4 / 51mm / 130mm / 29 821973419091 910-21-010 FOX7137513M
QR / Gloss Black / FIT4 / 51mm / 140mm / 29 821973419046 910-21-005 FOX7181129M
