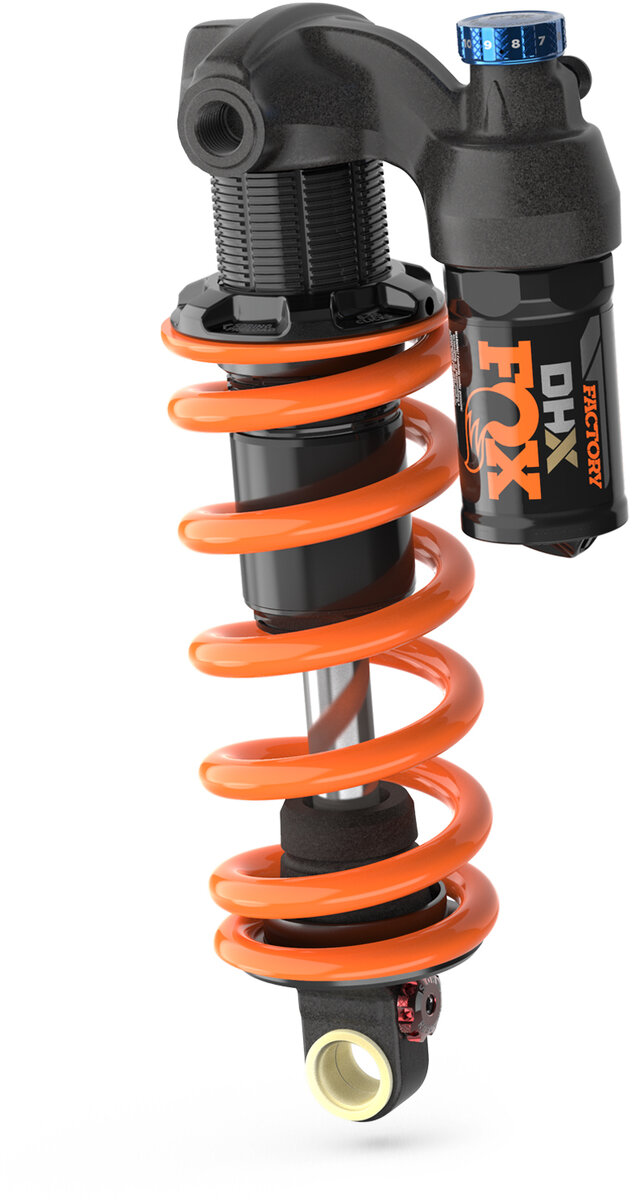

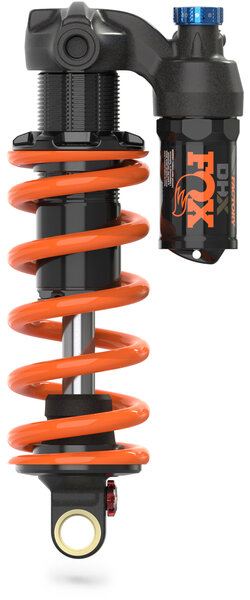

FOX Factory DHX - 2022
Details
COIL PERFORMANCE FOR THE TRAIL AND BEYOND
Answering the prayers of riders seeking the ultimate in plush suspension, the new DHX brings coil-sprung, magic-carpet, trail-smoothing performance in a wide range of configurations to the trails and beyond.
ADJUSTMENTS
- Independent 2 Position Open/Firm Lever
- Low Speed Rebound – 16 Clicks
- Low Speed Compression – 11 Clicks
- Coil spring preload - (new detents on spring collar)
SPECS & FAMILY FEATURES
- ALL-NEW chassis and damper
- High-flow main piston
- Numbered Tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
- Independent firm mode circuit – 2 position adjuster
- Optimized reservoir lengths per shock size
- Hydraulic top out feature
- Reduced damper noise
- MCU bottom out bumper
- Single-turn rebound adjuster with a variety of access modes (Tool-free, 3mm hex (direct access), 2mm hex or similar (side access)
- Spring preload collar with detents and max / min number of clicks and direction arrow
- Full diameter spring retainer with wire ring (like DHX2)
- Spring scuff guard on body (like DHX2)
ALL FACTORY DHX SHOCKS
- Shaft Coating Chromoly - Ultra-low friction, highly durable damper shaft finish
- VVC Rebound Yes
- Detents on spring collar Yes
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| TRUNION / 185 X 52.5 | 821973419794 | 978-01-041 | FOX67152008O |
| TRUNION / 185 X 55 | 821973419800 | 978-01-043 | FOX66288915O |
| TRUNION / 205 x 60 | 821973419817 | 978-01-045 | FOX66508230O |
| TRUNION / 205 x 62.5 | 821973419824 | 978-01-047 | FOX67211115O |
| STANDARD / 210 x 50 | 821973419732 | 978-01-029 | FOX58456885O |
| STANDARD / 210 X 52.5 | 821973419749 | 978-01-031 | FOX59687305O |
| STANDARD / 210 x 55 | 821973419756 | 978-01-033 | FOX58577959O |
| STANDARD / 230 x 57.5 | 821973419763 | 978-01-035 | FOX59608148O |
| STANDARD / 230 x 60 | 821973419770 | 978-01-037 | FOX58109617O |
| STANDARD / 230 x 65 | 821973419787 | 978-01-039 | FOX58451533O |
