Details

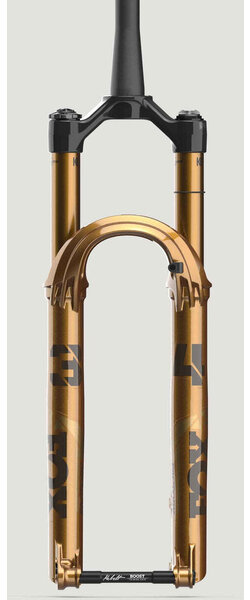

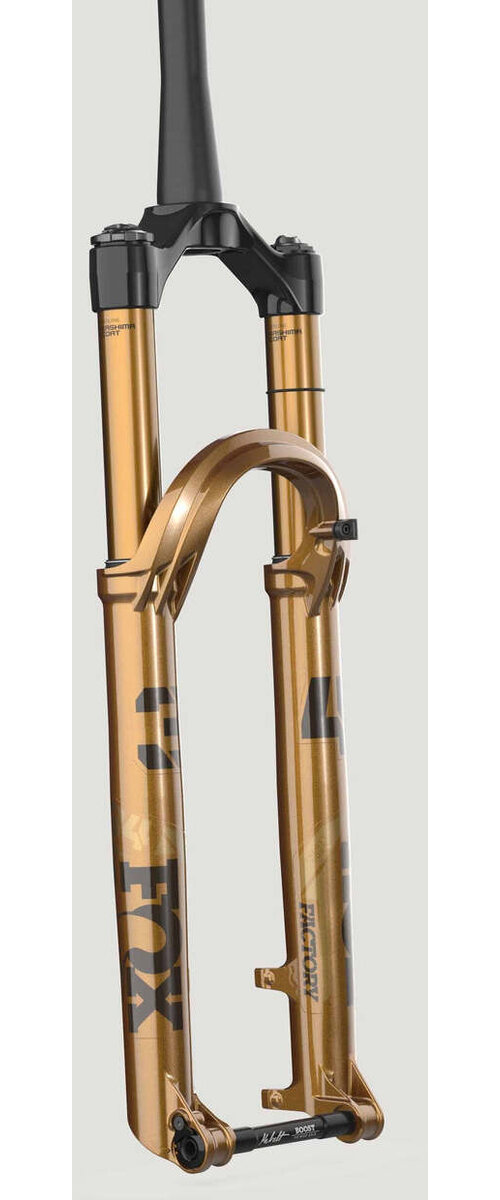

THE HARD CHARGING DO-IT-ALL TRAIL FORK
A trail fork not to be underestimated, the venerable 34 is more capable than ever before. With damping optimized for trail, the 34 excels at all-mountain descending while keeping the weight low.
To celebrate 50 Years of pushing potential further, FOX is releasing a run of Factory forks in our brand-new limited Podium Gold colorway. Once sold out, this color will not be restocked.
Trail riders no longer need to choose between a descent-focused damper or a lightweight endurance damper. GRIP X exudes exemplary descent performance, refined for less weight, easier set up and an easy access firm mode for pedaling efficiency. Learn more about the new GRIP family.
The arch design is pairs perfectly with modern trail bikes, where head tube profiles have grown larger and fork offsets shorter. The 34’s arch juts forward to provide ample headtube clearance at full compression. Countless engineering hours created an organic lower leg shape that optimizes stiffness with the absolute minimal amount of material.
The svelte new Kabolt SL thru-axle drops an additional 12g over our standard Kabolt axle by eliminating the additional weight of an axle nut and decreasing the flange diameter.
As a fork compresses, air pressure increases which can impede the fork reaching its full travel. Our lower leg channels help alleviate this issue by dramatically increasing air volume within the lower legs and reducing unintended pressure ramping. Lower leg bath oil is also circulated to the upper reaches of the lower legs, continuously lubricating inner seals and bushings.
Specs
Travel | 140mm |
---|---|
Wheel Size | 29-inch |
Brake Compatibility | 160 direct Post Mount, Up to 180 compatible |
Steerer Diameter/Material | 1.5 Taper |
Stanchion Diameter/Materials | 34mm, Kashima coat |
Dropouts | Kabolt 110 |
Spring | FLOAT EVOL Air Spring |
Damper | GRIP X |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
110 x 15mm Kabolt / Podium Gold / 44mm / 140mm / 29-inch | 821973486475 | 910-21-258 | FOX74159499M |
